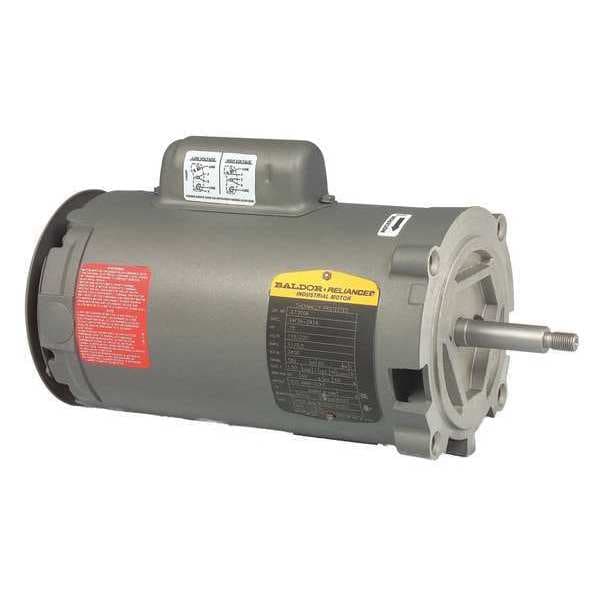

Baldor-Reliance General Purpose Motor, 115V AC/230V AC JL1317A - main

General Purpose Motor, 115V AC/230V AC

  • Mfr # JL1317A

  • Zoro # G7127246

product price: $921.99
/ea
Free Shipping & Returns

Key Features

CC Number
CC031A
Max. Ambient Temp.
40 Degrees C
RPM Range
3,001-3,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame
56J
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JL1317A
Zoro #
G7127246
UPC #
781568112830
Country of Origin
United States

Dimensions

Overall Length
13 1/4 in
Shaft Dia.
5/8 in
Shaft Length
2 3/8 in
Length Less Shaft
10 13/16 in

Details

Item
Pump Motor
CC Number
CC031A
Max. Ambient Temp.
40 Degrees C
RPM Range
3,001-3,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame
56J
Motor Enclosure Design
Open Dripproof
Standards
CSA, RoHS Compliant, UR
Motor Mounting Position
Vertical
Motor Shaft Rotation
CCW
Motor Service Factor
1.2
Nameplate RPM
3,450
Ins. Class
B
No. of Speeds
1
Full Load Amps
13/26 A
Motor Thermal Protection
Auto
Phase
Single
Motor Frame Material
Steel
Nominal Efficiency
70 %
Hz
60 Hz
Motor Shaft Design
Threaded
Motor Bearings
Ball
Voltage
115V AC, 230V AC
Motor Design
Capacitor-Start
Inverter Rated
No
HP
2
Motor Application
General Application
Part Winding Start Capable
Yes
Duty Cycle
Continuous
NEMA Design
L

Description

Pump Motor, CC Number CC031A, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 13/26 A, Full Load Amps @ 50Hz Not Applicable, HP 2, Ins. Class B, Inverter Rated No, Inverter Rating Not Applicable, Length Less Shaft 10 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application General Application, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
