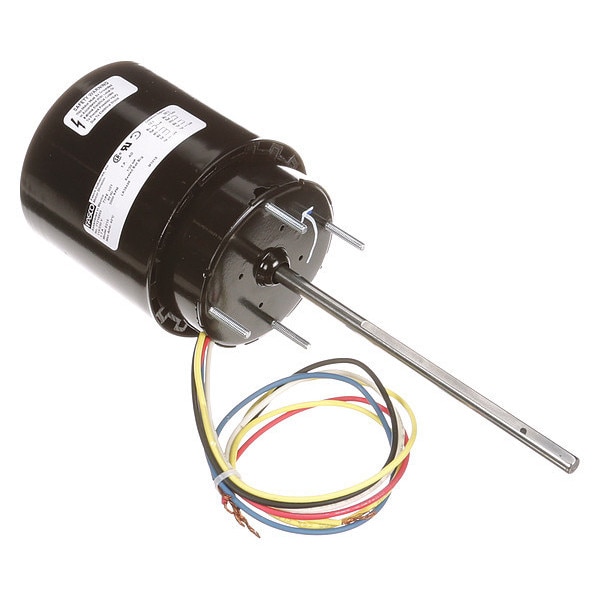

Fasco HVAC Motor, 1/20 HP, 3000 rpm, 115/230V, 3.3 D215 - main

HVAC Motor, 1/20 HP, 3000 rpm, 115/230V, 3.3

  • Mfr # D215

  • Zoro # G6171033

product price:  $198.99
/ea
Free Shipping & Returns

Key Features

Voltage
115/230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D215
Zoro #
G6171033
UPC #
663001025207
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Length Less Shaft
4 3/4 in
Shaft Length
6 1/2 in
Body Dia.
3 5/16 in
Lead Length
12 in
Overall Length
11 1/4 in
Frame Size
3.3
Shaft Diameter
5/16 in
Body Diameter
3.3 in

Details

Voltage
115/230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/20
RPM Range
1,801-3,000
Mounting Pattern
2-7/8 x 2-7/8
Motor Shaft Design
Flat
Standards
CSA Certified, UL Recognized
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Application
Fan/Blower
Mounting Stud Location
4/Shaft End
Motor Thermal Protection
Auto
Frame
3.3
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Shaft Rotation
CCWSE
Motor Service Factor
1
Full Load Amps
1.1 A
Motor Bearings
Ball
Ins. Class
B
Motor Mounting Type
Ring/Stud
Number of Shafts
1
Motor Design
Shaded Pole
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
HVAC/R
Duty
Continuous
Hz
60 Hz
Phase
Single
Item
Fan and Blower Motor
Capacitor Required
Capacitor Not Required
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Weight
5 lb
Motor Mounting Position
All Angle
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Wattage
40 W
Frame Material
Steel
Shaft Design
Flat
Full Load Current @ 60 Hz
1.1 A
Sub Application
General Purpose
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Product Type
Fan and Blower Motor
Drive Type
Direct Drive
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115/230V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 40 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Frame Material Steel
