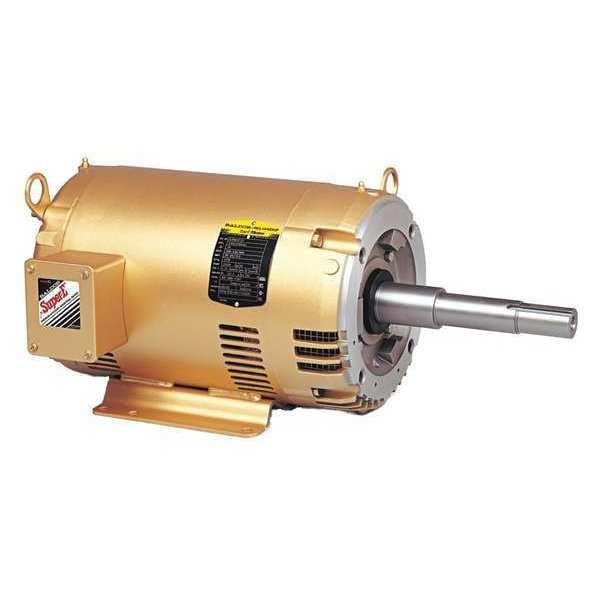

Baldor-Reliance General Purpose Motor, 230V AC/460V AC EJMM3555T - main

General Purpose Motor, 230V AC/460V AC

  • Mfr # EJMM3555T

  • Zoro # G7091336

product price:  $1,125.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2
RPM Range
3,001-3,600
Nameplate RPM
3,490
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EJMM3555T
Zoro #
G7091336
UPC #
781568394816
Country of Origin
United States

Dimensions

Shaft Length
3 5/8 in
Length Less Shaft
11 3/4 in
Shaft Dia.
7/8 in
Overall Length
15 7/16 in
Frame Size
143JM
Shaft Diameter
7/8 in

Details

Item
AC Induction Motor
Motor Design
Three-Phase
HP
2
RPM Range
3,001-3,600
Nameplate RPM
3,490
Voltage
230V AC, 460V AC
Frame
143JM
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
CC Number
CC010A
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Inverter Rated
Yes
Motor Thermal Protection
None
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Phase
Three
Ins. Class
F
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Bearings
Ball
Motor Shaft Rotation
CCW
Hz
60 Hz
Motor Frame Material
Steel
Full Load Amps
2.5/5/5.3 A
Standards
CSA EEV, NEMA Premium, UR
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Application
General Purpose
Part Winding Start Capable
No
HP @ 50Hz
2 hp
Full Load Amps @ 50Hz
5.8/2.9 A
NEMA Design
B
RPM @ 50Hz
3,490
Removable Base
Regreasable
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Voltage @ 50Hz
190/380 V
NEMA Design Class
B
Insulation Class
F
Frame Material
Steel
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Regreasable
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Horsepower @ 50 Hz
2 hp
Full Load Current @ 50 Hz
5.8/2.9 A
Nameplate RPM @ 50 Hz
985/980 RPM
Frequency
60 Hz
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Full Load Current @ 60 Hz
2.5/5/5.3 A
Inverter Rating
Inverter Rated
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Bearing Type
Ball

Description

AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3,490, Frame 143JM, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.5/5/5.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 3,001-3,600, CSA EEV, NEMA Premium, UR
