Shop BALDOR-RELIANCE

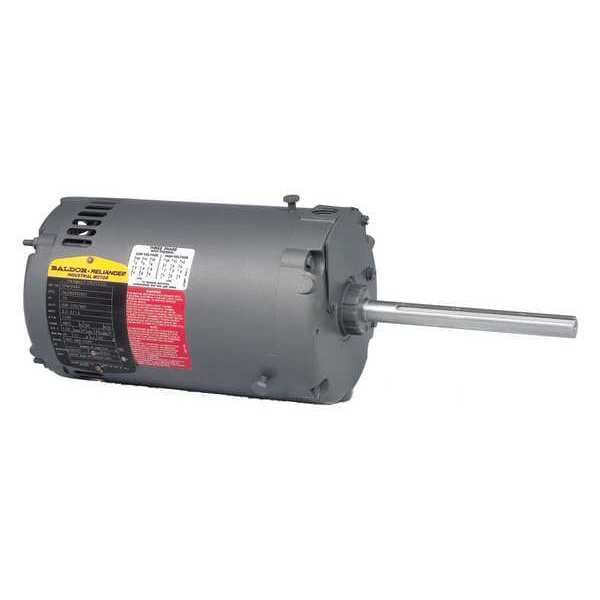

Three-Phase AC Induction Motor, 1 1/2 HP, 56YZ Frame, 208V AC, 230V AC, 460V AC Voltage

  • Mfr # CFM3166A

  • Zoro # G7130965

product price:  $995.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1,140
Voltage
208V AC, 230V AC, 460V AC
Full Load Amps
2.5/5/5.5 A
Frame
56YZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CFM3166A
Zoro #
G7130965
UPC #
781568121504
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/16 in
Overall Length
17 3/16 in
Shaft Dia.
5/8 in
Shaft Length
6 in
Frame Size
56YZ
Shaft Diameter
5/8 in

Details

Item
AC Induction Motor
HP
1 1/2
Nameplate RPM
1,140
Voltage
208V AC, 230V AC, 460V AC
Full Load Amps
2.5/5/5.5 A
Frame
56YZ
Motor Bearings
Sealed
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Air Over
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
60 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
76 %
Standards
CSA, RoHS Compliant, UR
CC Number
CC031A
Inverter Rated
No
NEMA Design
B
Motor Thermal Protection
Auto
Duty Cycle
Continuous
Part Winding Start Capable
Yes
Usable @ 208V
Usable at 208V
Inverter Rating
Not Inverter Rated
Bearing Protection
Sealed Bearings
Sub Application
Condenser Fan
Mounting Position
Horizontal
Shaft Design
Keyed
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
2.5/5/5.5 A
Frame Material
Steel
Number of Speeds
1
Nameplate RPM @ 50 Hz
2945/2950/2955/2910/2920/2925 RPM
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Duty
Continuous
Ambient Temperature - Maximum
60 Degrees C
Motor Enclosure Type
Open Air Over
Frequency
60 Hz

Description

AC Induction Motor, Three-Phase, Open Air Over Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1,140, Frame 56YZ, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.5/5/5.5 A, Not Applicable Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Sealed Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 60 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 76 Percent, 1,101-1,200, CSA, RoHS Compliant, UR
