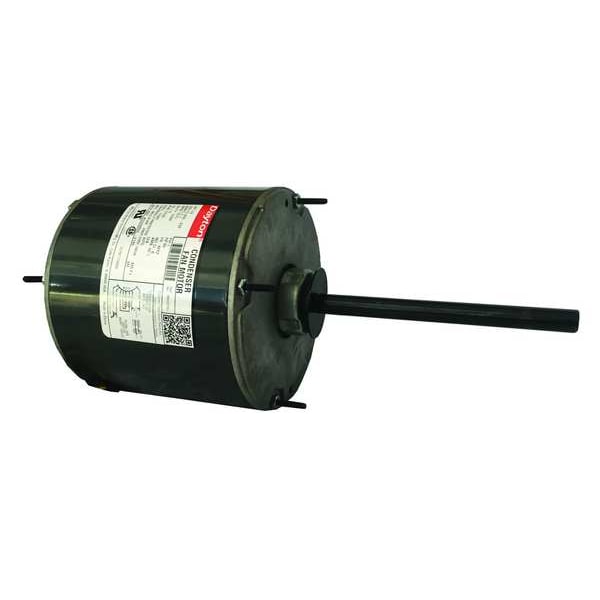

Condenser Fan Motor, 1/2 hp
Mfr # 4M207
Zoro # G3412062
product price:Â $173.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
4M207
Zoro #
G3412062
UPC #
190735330241
Country of Origin
Multiple
Dimensions
Overall Length
10 5/16 in
Lead Length
30 in
Stud Size
8-32 NC-2A
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Shaft Length
6 in
Shaft Dia.
1/2 in
Length Less Shaft
6 5/8 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/8 in
Frame Size
48YZ
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.1-3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
