Dayton

Motor, PSC, 1/2 HP, 1650,115/230V, 48Y, OAO

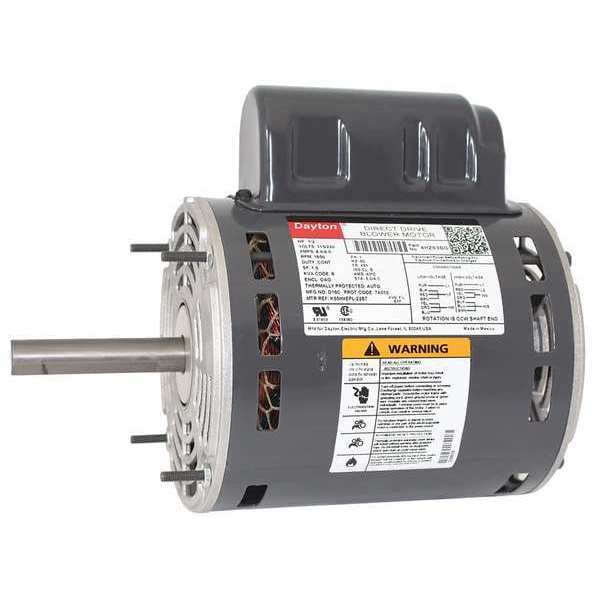

Dayton Motor, PSC, 1/2 HP, 1650,115/230V, 48Y, OAO 4HZ63BG
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$221.62
  • Motor Mounting Position: All Angle
  • Length Less Shaft: 6 1/4 in
  • Capacitor Required: Included
See full product details
This item ships free.
Total: $221.62

Dayton #4HZ63BG Specifications

  • Motor Mounting Position: All Angle
  • Length Less Shaft: 6 1/4 in
  • Capacitor Required: Included
  • Item: Direct Drive Blower Motor
  • Shaft Length: 3 in
  • Nameplate RPM: 1,650
  • Motor Application: HVAC/R
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Motor Mounting Type: Stud
  • Standards: CSA Certified, UL Recognized
  • Max. Ambient Temp.: 40 Degrees C
  • Hz: 60 Hz
  • Replacement For: Mfr. No. 4HZ25, 4HZ45, 4HZ47
  • Voltage: 115/230V AC
  • Shaft Dia.: 5/8 in
  • Motor Bearings: Ball
  • Motor Thermal Protection: Auto
  • No. of Speeds: 1
  • Motor Enclosure Design: Open Air-Over
  • RPM Range: 1,601-1,700
  • Application: Mfr. No. 4HZ25, 4HZ45, 4HZ47
  • Motor Shaft Design: Flat
  • Motor Design: Permanent Split Capacitor
  • Motor Service Factor: 1
  • Motor Shaft Rotation: CCWSE
  • Full Load Amps: 8.0-4.0
  • HP: 1/2
  • Motor Sub Application: Direct Drive Fan/Blower
  • Ins. Class: B
  • Phase: Single
  • Duty: Continuous
  • Frame: 48Y
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,650, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0-4.0, 48Y Frame, Replacement For Mfr. No. 4HZ25, 4HZ45, 4HZ47, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle
