Shop BALDOR-RELIANCE

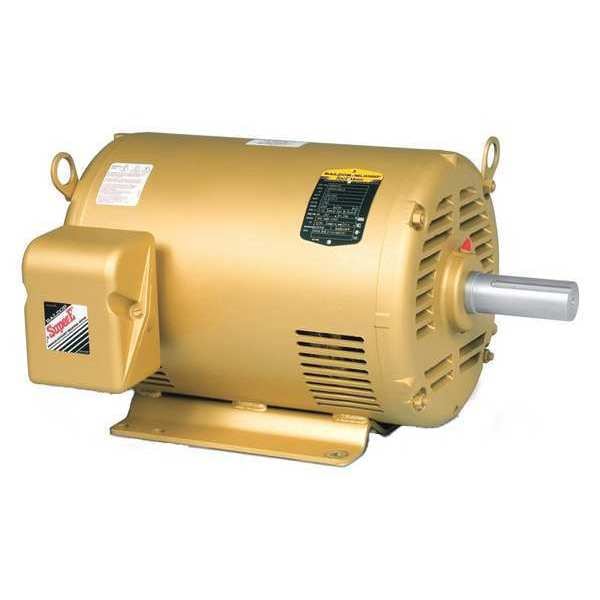

Three-Phase AC Induction Motor, 100 HP, 404T Frame, 230V AC, 460V AC Voltage, 1,780 Nameplate RPM

  • Mfr # EM2555T

  • Zoro # G7123341

product price:  $11,051.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
100
Nameplate RPM
1,780
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
118.0/236.0/248.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM2555T
Zoro #
G7123341
UPC #
781568295861
Country of Origin
United States

Dimensions

Length Less Shaft
27 in
Overall Length
34 1/2 in
Shaft Dia.
2 7/8 in
Shaft Length
7 7/16 in
Frame Size
404T
Shaft Diameter
2 7/8 in
Wire Rope Length
34 1/2 in

Details

Item
AC Induction Motor
HP
100
Nameplate RPM
1,780
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
118.0/236.0/248.0 A
Frame
404T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
95.4 %
Standards
CSA EEV, NEMA Premium, UR
CC Number
CC010A
Motor Thermal Protection
None
NEMA Design
A
Inverter Rated
Yes
Part Winding Start Capable
No
Voltage @ 50Hz
190/380 V
Usable @ 208V
Usable at 208V
HP @ 50Hz
100
Duty Cycle
Continuous
Full Load Amps @ 50Hz
280.0/140.0 A
Removable Base
Regreasable
RPM @ 50Hz
1,780
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 50 Hz
280.0/140.0 A
Frame Material
Steel
Mounting Position
Horizontal
Nameplate Horsepower @ 50 Hz
100 hp
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Nameplate RPM @ 50 Hz
1,480/1,485/1,475/1,480 RPM
Number of Speeds
1
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Full Load Current @ 60 Hz
118.0/236.0/248.0 A
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Bearing Lubrication Type
Regreasable
Insulation Class
F
Frequency
60 Hz
NEMA Design Class
A

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 1,780, Frame 404T, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 118.0/236.0/248.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, 1,701-1,800, CSA EEV, NEMA Premium, UR
