  11. Three-Phase AC Induction Motor, 1/2 HP, 56C Frame, 208V AC, 230V AC, 460V AC Voltage

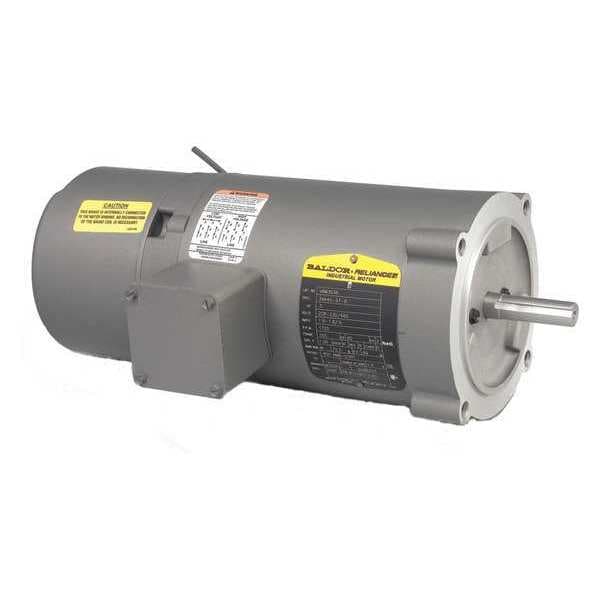

Baldor-Reliance Three-Phase AC Induction Motor, 1/2 HP, 56C Frame, 208V AC, 230V AC, 460V AC Voltage VBM3538 - main

Three-Phase AC Induction Motor, 1/2 HP, 56C Frame, 208V AC, 230V AC, 460V AC Voltage

  • Mfr # VBM3538

  • Zoro # G7051040

product price: $1,298.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,725
Voltage
208V AC, 230V AC, 460V AC
Full Load Amps
0.90/1.8/1.9 A
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBM3538
Zoro #
G7051040
UPC #
781568115398
Country of Origin
United States

Dimensions

Length Less Shaft
13 1/8 in
Overall Length
15 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in

Details

Item
AC Induction Motor
HP
1/2
Nameplate RPM
1,725
Voltage
208V AC, 230V AC, 460V AC
Full Load Amps
0.90/1.8/1.9 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Vertical
Motor Shaft Design
Standard
Nominal Efficiency
75.5 %
Standards
CSA, RoHS Compliant, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
No
NEMA Design
B
Part Winding Start Capable
No
Duty Cycle
Continuous
Usable @ 208V
Yes

Description

AC Induction Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,725, Frame 56C, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.90/1.8/1.9 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, 1,701-1,800, CSA, RoHS Compliant, UR
