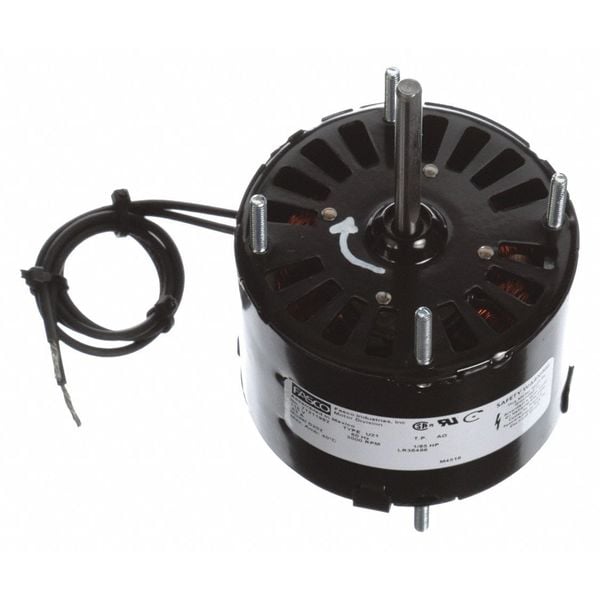

Fasco HVAC Motor, 1/85 HP, 3000 rpm, 115V, 3.3 D202 - main

HVAC Motor, 1/85 HP, 3000 rpm, 115V, 3.3

  • Mfr # D202

  • Zoro # G6205035

product price:  $78.89
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/85
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D202
Zoro #
G6205035
UPC #
663001025009
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/16 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Length Less Shaft
2 3/8 in
Lead Length
20 in
Bolt Circle Dia.
2 7/8 in
Overall Length
4 11/16 in
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Body Diameter
3.3 in
Shaft Diameter
1/4 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/85
RPM Range
1,801-3,000
Motor Thermal Protection
Auto
Duty
Continuous
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Application
Fan/Blower
Number of Shafts
1
Phase
Single
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Design
Shaded Pole
Motor Mounting Type
Face
Full Load Amps
.62 A
No. of Speeds
1
Frame
3.3
Motor Application
HVAC/R
Mounting Pattern
2-7/8 x 2-7/8
Item
Fan and Blower Motor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Bearings
Sleeve
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CWSE
Motor Service Factor
1
Hz
60 Hz
Mounting Stud Location
4/Both Ends
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Single Special Extension
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Mounting Stud Pattern
2 in x 2 in
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
17 lb
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Nominal Efficiency
0.62 %
Conduit Box Position
F3
Mounting
Stud
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
Horizontal
Motor Enclosure Type
Open Air Over
Sub Application
General Purpose
Frequency
60 Hz
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve
Drive Type
Direct Drive
Full Load Current @ 60 Hz
0.62 A
Insulation Class
B
Product Type
Fan and Blower Motor
Wattage
370 W
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/85 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.62 A Full Load Amps, 3.3 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
