Shop BALDOR-RELIANCE

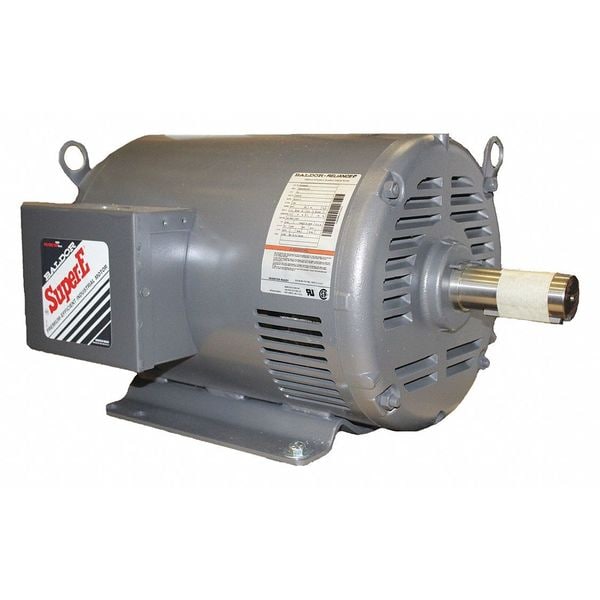

Three-Phase AC Induction Motor, 15 HP, 254T Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # EHM2523T

  • Zoro # G7149488

product price:  $2,369.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.2/36.4/39 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EHM2523T
Zoro #
G7149488
UPC #
781568424162
Country of Origin
United States

Dimensions

Length Less Shaft
19 3/16 in
Overall Length
23 3/16 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Shaft Diameter
1 5/8 in
Frame Size
254T
Wire Rope Length
23 3/16 in

Details

Item
AC Induction Motor
HP
15
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.2/36.4/39 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
93 %
Standards
CSA, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
A
Usable @ 208V
Usable at 208V
Part Winding Start Capable
No
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Motor Enclosure Type
Open Drip Proof
Inverter Rating
Inverter Rated
Insulation Class
F
Mounting Position
Horizontal
Frame Material
Steel
Nameplate RPM @ 50 Hz
1,470/1,475/1,477/1,455/1,460/1,465 RPM
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
A
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Number of Speeds
1
Full Load Current @ 60 Hz
18.2/36.4/39 A
Frequency
60 Hz

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1,770, Frame 254T, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.2/36.4/39 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, 1,701-1,800, CSA, UR
