Dayton

Split-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

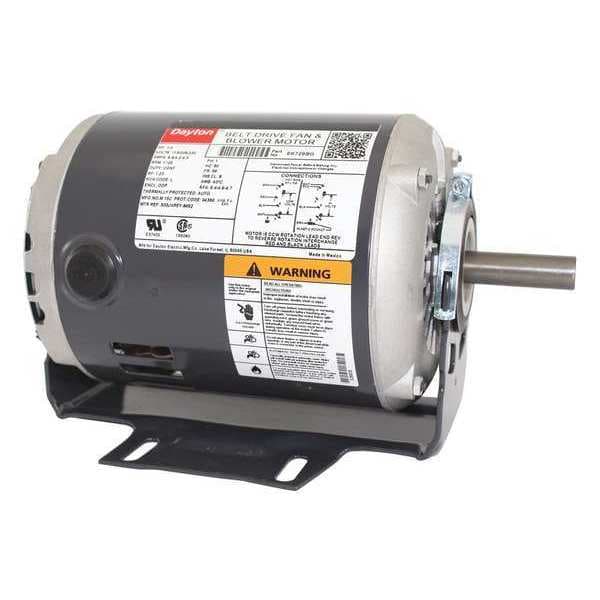

Dayton Split-Phase Belt Drive Motor,  1/2 HP,  56 Frame,  115/208-230V AC Voltage,  1,725 Nameplate RPM 6K729
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$181.44
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $181.44

Dayton #6K729 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/2
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 56
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.25
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Shaft Length: 1 7/8 in
  • Motor Frame Material: Steel
  • Motor Shaft Rotation: CW/CCW
  • Ins. Class: B
  • Body Dia.: 5 5/8 in
  • Full Load Amps: 8.6/4.3-4.2
  • Length Less Shaft: 8 3/8 in
  • Max. Ambient Temp.: 40 Degrees C
  • Standards: UL Recognized (E37403) and CSA Certification (258501)
  • Resilient Ring Dia.: 2 1/2 in
  • Includes: Shaft Key
  • Frame Material: Steel
  • Hz: 60
  • Motor Bearings: Ball
  • Duty: Continuous
  • Overall Length: 10 1/4 in
  • Motor Mounting Position: All Angle
  • Ring to Ring Center: 8 5/16 in
  • Motor Shaft Design: Keyed
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple
Feedback Help us improve our product information

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 8.6/4.3-4.2 Full Load Amps, 56 Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Shaft Dia. 5/8 in
