Shop BALDOR-RELIANCE

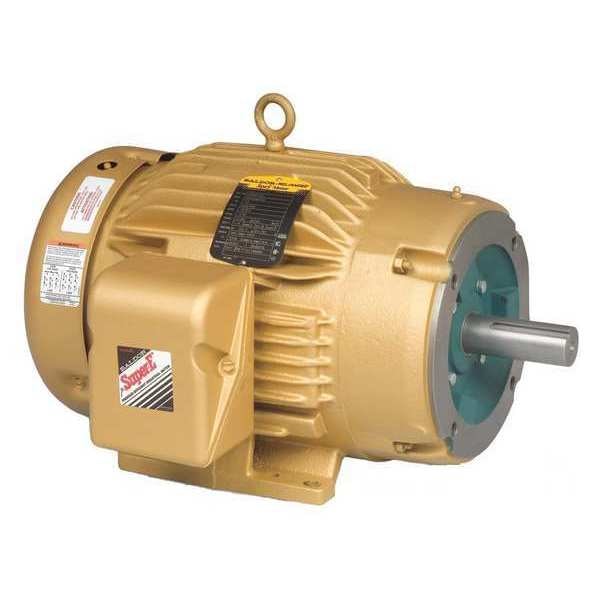

Three-Phase AC Induction Motor, 20 HP, 256TC Frame, 208V AC, 230V AC, 460V AC Voltage

  • Mfr # CEM4106T

  • Zoro # G7150921

product price:
$
4,407.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
3,520
Voltage
208V AC, 230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.0/23.0/46.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM4106T
Zoro #
G7150921
UPC #
781568435502
Country of Origin
United States

Dimensions

Length Less Shaft
20 1/8 in
Overall Length
23 7/8 in
Shaft Dia.
1 5/8 in
Shaft Length
3 3/4 in
Frame Size
256TC
Shaft Diameter
1 5/8 in
Wire Rope Length
23 7/8 in

Details

Item
AC Induction Motor
HP
20
Nameplate RPM
3,520
Voltage
208V AC, 230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.0/23.0/46.0 A
Frame
256TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
91 %
Standards
CSA EEV, NEMA Premium, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
A
Part Winding Start Capable
No
HP @ 50Hz
20 hp
RPM @ 50Hz
3,520
Voltage @ 50Hz
190/380 V
Removable Base
Regreasable
Full Load Amps @ 50Hz
56.0/28.0 A
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Application
General Purpose
Full Load Current @ 50 Hz
56.0/28.0 A
Nameplate Horsepower @ 50 Hz
20 hp
Mounting Position
Horizontal
Inverter Rating
Inverter Rated
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Frequency
60 Hz
Number of Speeds
1
NEMA Design Class
A
Bearing Type
Ball
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Regreasable
Frame Material
Cast Iron
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
5.0/23.0/46.0 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,475/1,480/1,455/1,460 RPM

Description

AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3,520, Frame 256TC, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0/23.0/46.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, 3,001-3,600
