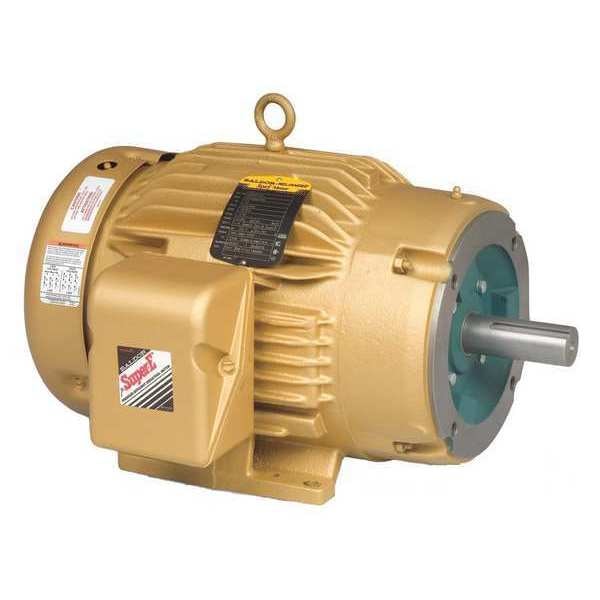

Baldor-Reliance Three-Phase AC Induction Motor, 20 HP, 256TC Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM CEM2334T - main
Shop BALDOR-RELIANCE

Three-Phase AC Induction Motor, 20 HP, 256TC Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # CEM2334T

  • Zoro # G7036191

product price:  $4,233.61
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.

Key Features

HP
20
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
52.0/48.0/24.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CEM2334T
Zoro #
G7036191
UPC #
781568134146
Country of Origin
United States

Dimensions

Length Less Shaft
20 1/8 in
Overall Length
23 7/8 in
Shaft Dia.
1 5/8 in
Shaft Length
3 3/4 in

Details

Item
AC Induction Motor
HP
20
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
52.0/48.0/24.0 A
Frame
256TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
93 %
Standards
CSA EEV, NEMA Premium, UR
CC Number
CC010A
Inverter Rated
Yes
NEMA Design
A
Motor Thermal Protection
None
RPM @ 50Hz
1,770
Duty Cycle
Continuous
HP @ 50Hz
20 hp
Full Load Amps @ 50Hz
58.0/29.0 A
Part Winding Start Capable
No
Voltage @ 50Hz
190/380 V
Removable Base
Regreasable
Usable @ 208V
Yes

Description

AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256TC, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 52.0/48.0/24.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, 1,701-1,800, CSA EEV, NEMA Premium, UR
