  6. Three-Phase AC Induction Motor, 3 HP, 182T Frame, 575V AC Voltage, 1,760 Nameplate RPM

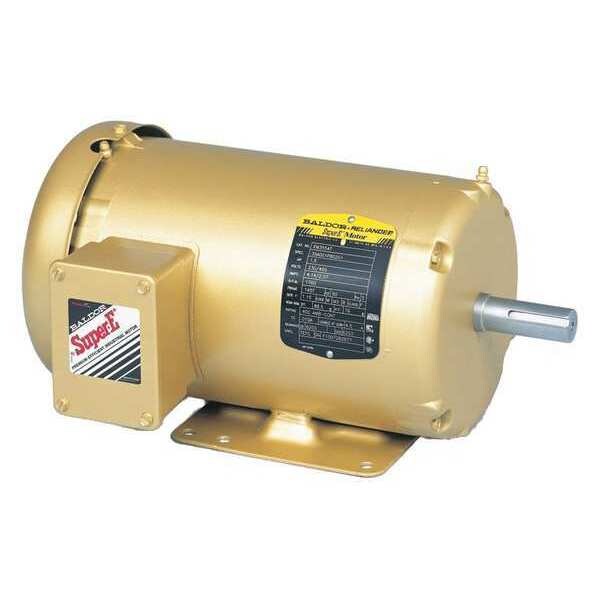

Baldor-Reliance Three-Phase AC Induction Motor, 3 HP, 182T Frame, 575V AC Voltage, 1,760 Nameplate RPM EM3611T-5 - main

Three-Phase AC Induction Motor, 3 HP, 182T Frame, 575V AC Voltage, 1,760 Nameplate RPM

  • Mfr # EM3611T-5

  • Zoro # G7074028

product price:  $1,036.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1,760
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.3 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM3611T-5
Zoro #
G7074028
UPC #
781568138977
Country of Origin
United States

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in

Details

Item
AC Induction Motor
HP
3
Nameplate RPM
1,760
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.3 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
575V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
89.5 %
Standards
CSA EEV, NEMA Premium, RoHS Compliant, UR
CC Number
CC010A
NEMA Design
B
Inverter Rated
Yes
Motor Thermal Protection
None
Removable Base
Regreasable
Part Winding Start Capable
No
Duty Cycle
Continuous

Description

AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,760, Frame 182T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,701-1,800, CSA EEV, NEMA Premium, RoHS Compliant, UR
