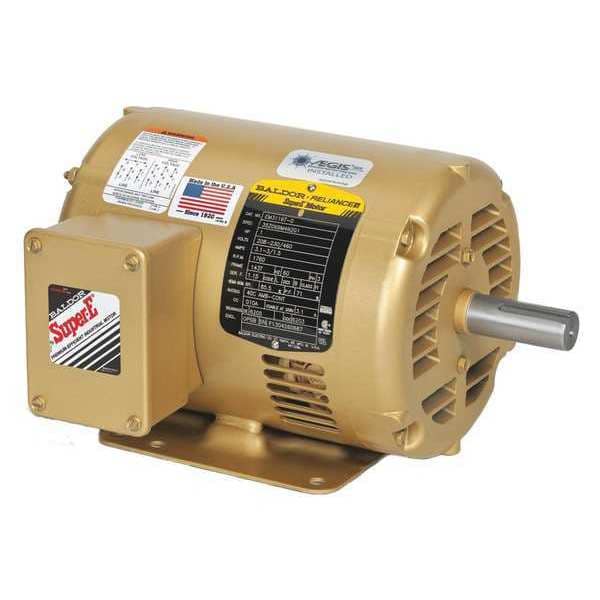

Baldor-Reliance Three-Phase AC Induction Motor, 3/4 HP, 56 Frame, 230V AC, 460V AC Voltage, 3,450 Nameplate RPM EM31111 - main

Three-Phase AC Induction Motor, 3/4 HP, 56 Frame, 230V AC, 460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # EM31111

  • Zoro # G7168309

product price:  $573.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.2/2.4/2.7 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM31111
Zoro #
G7168309
UPC #
781568732687
Country of Origin
United States

Dimensions

Length Less Shaft
8 3/8 in
Overall Length
10 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in

Details

Item
AC Induction Motor
HP
3/4
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.2/2.4/2.7 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
76.8 %
Standards
CURUSEEV, RoHS Compliant
CC Number
CC031A
Inverter Rated
No
NEMA Design
B
Motor Thermal Protection
None
Usable @ 208V
Yes
Duty Cycle
Continuous
Part Winding Start Capable
No

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 3,450, Frame 56, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.2/2.4/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 76.8 Percent, 3,001-3,600, CURUSEEV, RoHS Compliant
