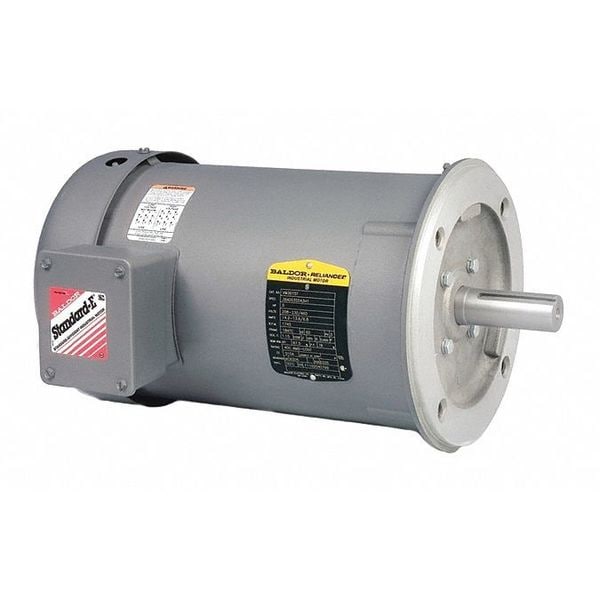

Three-Phase AC Induction Motor, 3/4 HP, 56C Frame, 208V AC, 230V AC, 460V AC Voltage
Mfr # VM3543
Zoro # G7089148
product price: $798.99
/ea
Free Shipping & Returns
Key Features
HP
3/4
Nameplate RPM
1,140
Voltage
208V AC, 230V AC, 460V AC
Full Load Amps
1.5/3/3.3 A
Frame
56C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VM3543
Zoro #
G7089148
UPC #
781568109618
Country of Origin
United States
Dimensions
Length Less Shaft
11 in
Overall Length
12 7/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Description
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,140, Frame 56C, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.5/3/3.3 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, 1,101-1,200, CSA, RoHS Compliant, UR
