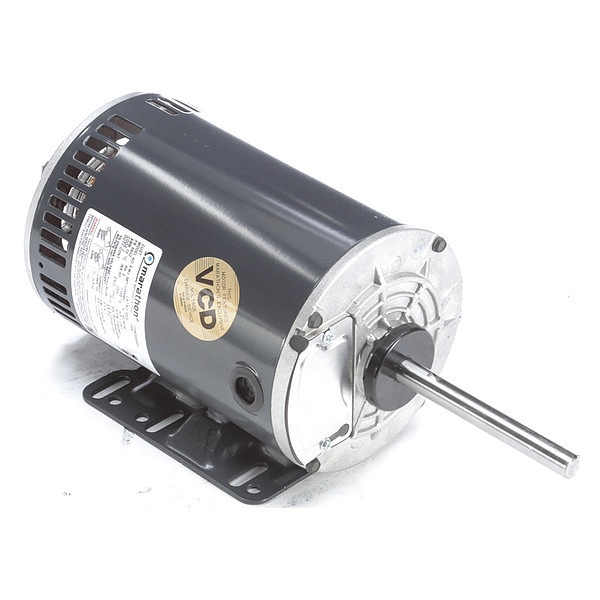

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 056T11O5306
  • Zoro # G5301536
product price:
$
572.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T11O5306
Zoro #
G5301536
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 in
Overall Length
15 11/16 in
Length Less Shaft
10 11/16 in
Body Dia.
6 1/2 in
Frame Size
56HZ
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Wire Rope Length
15 11/16 in
Length
15 11/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Full Load Amps
5.4-5.4/2.7 A
Motor Service Factor
1
Nominal Efficiency
78.5 %
Motor Shaft Design
Keyed with Single Flat
Duty
Continuous
Ins. Class
H
Application
Condenser Fan
Standards
CSA Certified (LR2025), UL Recognized
Motor Bearings
Ball
Hz
50/60 Hz
Features
Combination Base With 12 Mounting Holes, Shaft Slinger, Threaded Lead Exit
Service Factor @ 50Hz
1
Weight
38 lb
Full Load Amps @ 50Hz
5.4-5.4/2.7 A
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Motor Frame Material
Steel
Voltage @ 50Hz
208-230/460V AC
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,140
Conduit Box Location
Exterior
Output Watts
1100 W
HP @ 50Hz
1-1/2
Mounting
Rigid Base
Drive Type
Direct Drive
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Full Load Current @ 50 Hz
5.4-5.4/2.7 A
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
208-230/460V AC
Number of Speeds
1
Insulation Class
H
Full Load Current @ 60 Hz
5.4-5.4/2.7 A
Frame Material
Steel
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Nameplate RPM @ 50 Hz
1,140 RPM
Frequency
60/50 Hz
Nameplate Service Factor @ 50 Hz
1
Wattage
1100 W
Motor Enclosure Type
Open Air Over
Shaft Design
Keyed
Product Type
Condenser Fan Motor
Capacitor Required
Capacitor Not Required
Mounting Position
Horizontal/Vertical Shaft Up

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.4-5.4/2.7 A Full Load Amps, 56HZ Frame, Output Watts 1100 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
