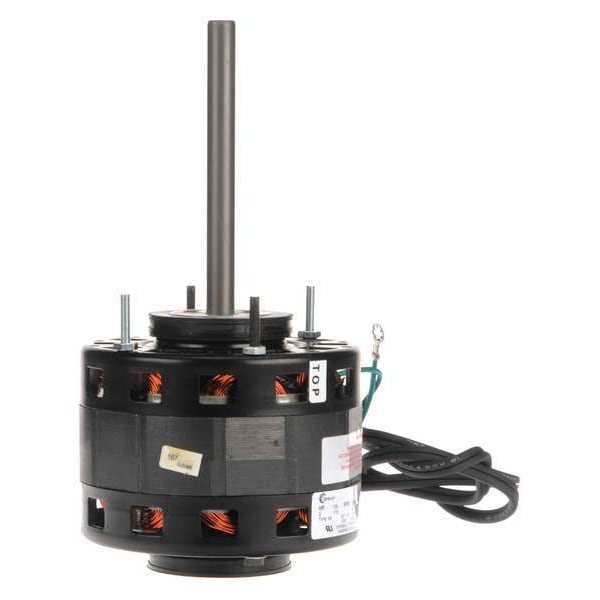

Motor, Sh Pole, 1/8 HP, 1050, 115V, 42Y, OAO
$103.00 /ea
This item ships free. DetailsStandard ground shipping
Technical Specifications
| Zoro #: G0681861 Mfr #: BLR6403 | |
| Motor Enclosure Design: Open Air-Over | Motor Shaft Design: Flat |
| Body Dia.: 5" | Motor Sub Application: Direct Drive Fan/Blower |
| Motor Service Factor: 1.00 | Capacitor Required: No |
| Motor Shaft Rotation: CCWLE | Motor Design: Shaded Pole |
| Nameplate RPM: 1050 | Motor Thermal Protection: Auto |
| Item: Direct Drive Blower Motor | Shaft Dia.: 1/2" |
| Phase: 1 | Hz: 60 |
| Motor Application: HVAC/R | Motor Mounting Type: Ring |
| Motor Bearings: Sleeve | HP: 1/8 |
| Max. Ambient Temp.: 40 Degrees C | Duty: Continuous |
| Frame: 42Y | Application: Blowers, Fans and Air Circulators |
| Resilient Ring Dia.: 2-1/2" | Ring to Ring Center: 4-1/16" |
| Length Less Shaft: 4-7/16" | Stud Size: #10-32 |
| Bolt Circle Dia.: 4-7/16" | Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 |
| Standards: UL Recognized, CSA Certified | Mounting Stud Pattern: 2-1/4" x 3-7/8" |
| Voltage: 115 | Mounting Stud Location: Shaft End |
| Shaft Length: 5" | Ins. Class: A |
| Includes: Resilient Mounting Ring | Motor Mounting Position: Horizontal |
| Full Load Amps: 5.2 | No. of Speeds: 1 |
| Country of Origin (subject to change): Mexico | |
Product Description
Direct Drive Blower Motor, Shaded Pole Motor Type, Open Air-Over Enclosure, 1/8 HP, 1050 Nameplate RPM, Voltage 115, 5.2 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class A, Duty Continuous, Number of Speeds 1, Mounting Ring, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CCWLE, Body Dia. 5 In., Length Less Shaft 4-7/16 In., Shaft Dia. 1/2 In., Shaft Length 5 In., Shaft Type Flat
