Shop BALDOR-RELIANCE

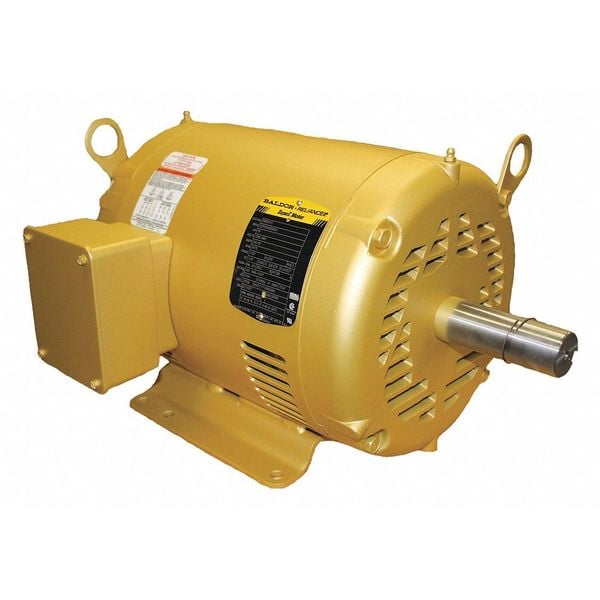

Three-Phase General Purpose Motor, 10 HP, 213T Frame, 208-230/460V AC Voltage

  • Mfr # EM3312T
  • Zoro # G8436644

product price:
$
2,009.99
/ea
Free Shipping & Returns

Key Features

HP
10
Nameplate RPM
3,475 RPM
Voltage
208V AC to 230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
24.0/12.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EM3312T
Zoro #
G8436644
UPC #
781568104743
Country of Origin
United States
Item
General Purpose Motor
HP
10
Nameplate RPM
3,475 RPM
Voltage
208V AC to 230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
24.0/12.0 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Weight
121 lb
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Full Load Current @ 60 Hz
24.0/12.0 A
Motor Enclosure Type
Open Drip Proof
Inverter Rating
Inverter Rated
Shaft Design
Keyed
Bearing Type
Ball
NEMA Design Class
B
Mounting Position
All Angle
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,450 RPM
Frequency
60 Hz
Application
General Purpose
Product Type
General Purpose Motor
Nameplate RPM @ 60 Hz
3,475 RPM
Nameplate Voltage @ 60 Hz
208-230/460V AC
Nameplate Horsepower @ 60 Hz
10 hp

Dimensions

Length Less Shaft
12 15/16 in
Overall Length
16 5/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
3 yr
Frame Size
213T
Shaft Diameter
1 3/8 in
Wire Rope Length
16 5/16 in
Length
16 5/16 in

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 3475 rpm, Frame 213T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.0/12.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
