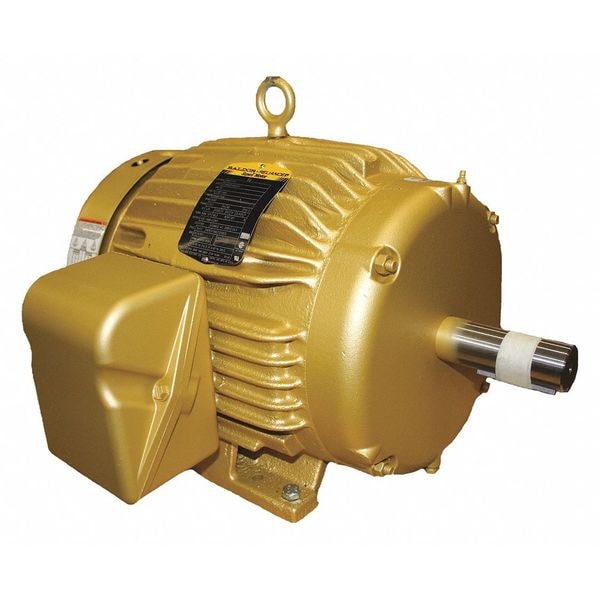

Baldor-Reliance Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM EM3771T - main

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM

  • Mfr # EM3771T

  • Zoro # G8628532

product price:  $2,356.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
3490 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.6/11.8 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EM3771T
Zoro #
G8628532
UPC #
781568102817
Country of Origin
United States

Dimensions

Length Less Shaft
15 1/16 in
Overall Length
18 7/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 3/8 in
Frame Size
215T

Details

Item
General Purpose Motor
HP
10
Nameplate RPM
3490 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
23.6/11.8 A
Frame
215T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
185 lb
Nameplate RPM @ 50 Hz
1,455 RPM
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Application
General Purpose
Number of Speeds
1
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
23.6/11.8 A
Manufacturers Warranty
3 yr
Bearing Type
Ball
NEMA Design Class
B
Frequency
60 Hz
Mounting Position
All Angle
Inverter Rating
Inverter Rated

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3490 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
