  6. Three-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM

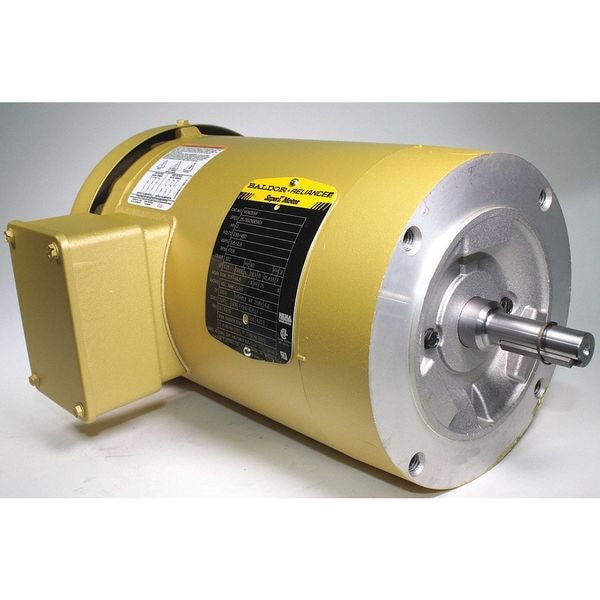

Baldor-Reliance Three-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM VEM3558 - main

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM

  • Mfr # VEM3558

  • Zoro # G8079242

product price:  $1,092.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1755 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
6.8/3.4 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VEM3558
Zoro #
G8079242
UPC #
781568308653
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/8 in
Overall Length
13 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1755 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
6.8/3.4 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Footnotes
1
Includes
Conduit Box
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
No
Usable @ 208V
Yes
Weight
49 lb
Duty Cycle
Continuous
NEMA Design
B

Description

The BALDOR-RELIANCE - VEM3558 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. These motors are widely used in industrial and commercial settings for power transmission and pneumatics applications. They convert electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - VEM3558:

  • CC Number: This motor has been assigned CC010A by EASA, which helps classify and track its design, specifications, and performance characteristics.
  • Duty Cycle: The duty cycle is continuous, designed for consistent operation in industrial applications.
  • Frame: The frame size is 56C conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: At full load, it draws a maximum current of 6.8/3.4 A, important information for determining power supply requirements.
  • NEMA Premium(R) Rated: This certification indicates that the motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: Yes - this indicates that the motor is compatible with powering by a variable frequency drive, which may allow control over speed and torque based on application needs."
