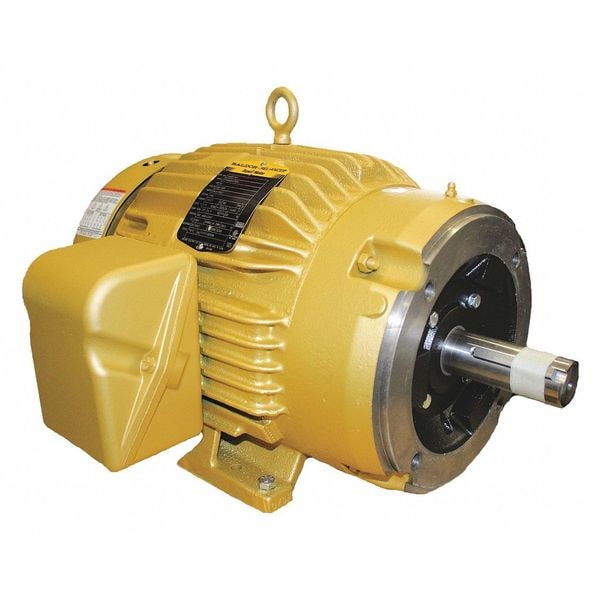

Baldor-Reliance Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM CEM3774T - main

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # CEM3774T

  • Zoro # G9823301

product price:  $2,340.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
1760 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
24.4/12.2 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CEM3774T
Zoro #
G9823301
UPC #
781568134405
Country of Origin
United States

Dimensions

Length Less Shaft
16 1/16 in
Overall Length
19 3/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/16 in
Manufacturers Warranty Length
3 yr
Frame Size
215TC
Shaft Diameter
1 3/8 in

Details

Item
General Purpose Motor
HP
10
Nameplate RPM
1760 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
24.4/12.2 A
Frame
215TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Footnotes
1,30
Includes
Conduit Box
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
Weight
202 lb
Usable @ 200V
Not Usable at 200V
NEMA Design
A
Duty Cycle
Continuous
Capacitor Required
No
Number of Speeds
1
Full Load Current @ 60 Hz
24.4/12.2 A
Inverter Rating
Inverter Rated
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Shaft Design
Keyed
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
2,925/2,935/2,940/2,895/2,905/2,915 RPM
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Bearing Type
Ball
NEMA Design Class
A
Application
General Purpose
Manufacturers Warranty
3 yr
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1760 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.4/12.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
