Shop CENTURY

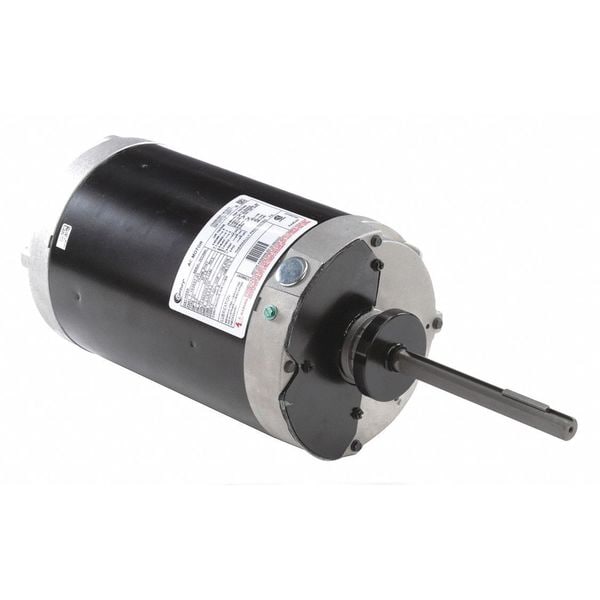

Condenser Fan Motor, 2 hp

  • Mfr # H699
  • Zoro # G2208062
product price:
$
484.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H699
Zoro #
G2208062
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
6 3/16 in
Overall Length
18 3/16 in
Length Less Shaft
12 in
Body Dia.
6 1/2 in
Bolt Circle Dia.
5 1/8 in
Shaft Diameter
5/8 in
Frame Size
56Y
Body Diameter
6.5 in
Bolt Circle Diameter
5 1/8 in
Wire Rope Length
18 3/16 in
Length
18 3/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Service Factor
1
Nominal Efficiency
84 %
Features
Quick Connect Design, Reversible
Hz
60 Hz
Motor Bearings
Ball
Duty
Continuous
Ins. Class
B
Full Load Amps
3.1/6.8-6.2 A
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Keyed
Stud Quantity
4
Duty Cycle
Continuous
Output Watts
1500 W
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
44 lb
Motor Frame Material
Steel
Mounting
Band
Bearing Type
Ball
Wattage
1500 W
Sub Application
Condenser Fan
Frequency
60 Hz
Shaft Design
Keyed
Ambient Temperature - Maximum
60 Degrees C
Drive Type
Direct Drive
Mounting Position
Vertical Shaft Up
Number of Speeds
1
Capacitor Required
Capacitor Not Required
Application
Condenser Fan
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
3.1/6.8-6.2 A
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.1/6.8-6.2 A Full Load Amps, 56Y Frame, Output Watts 1500 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
