  11. Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1,740 Nameplate RPM

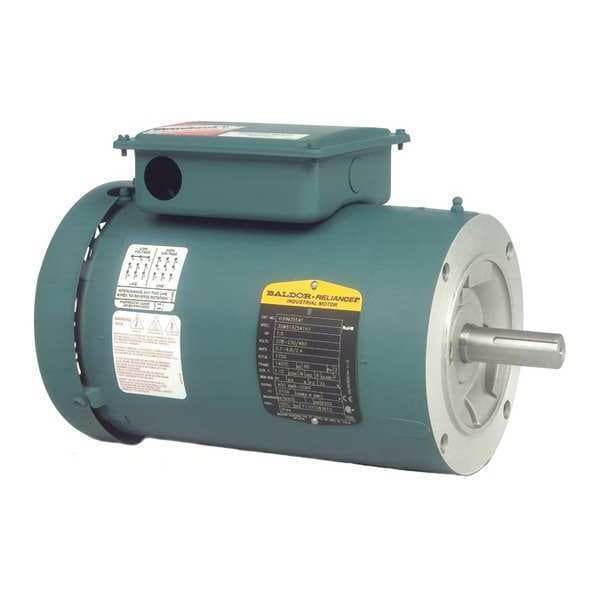

Baldor-Reliance Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1,740 Nameplate RPM VUHM3538 - main

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1,740 Nameplate RPM

  • Mfr # VUHM3538

  • Zoro # G8052731

product price: $530.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,740
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.1 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VUHM3538
Zoro #
G8052731
UPC #
781568502730
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/8 in
Overall Length
13 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
1,740
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.1 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Vertical
Motor Shaft Design
Standard
Nominal Efficiency
72 %
Standards
CE, CSA, RoHS Compliant, UR, WEEE
CC Number
CC010A
Motor Thermal Protection
None
Motor Sub Application
Conveyors; Unit Handling; Baggage Handling; Paclaging Equipment; Door Operators; Elevators; Hoists
Inverter Rated
Yes
Usable @ 208V
Yes
Duty Cycle
Continuous

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,740, Frame 56C, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, Reversible Motor Shaft Rotation, Nominal Efficiency 72 Percent, 1,701-1,800, CE, CSA, RoHS Compliant, UR, WEEE
