Shop GENTEQ

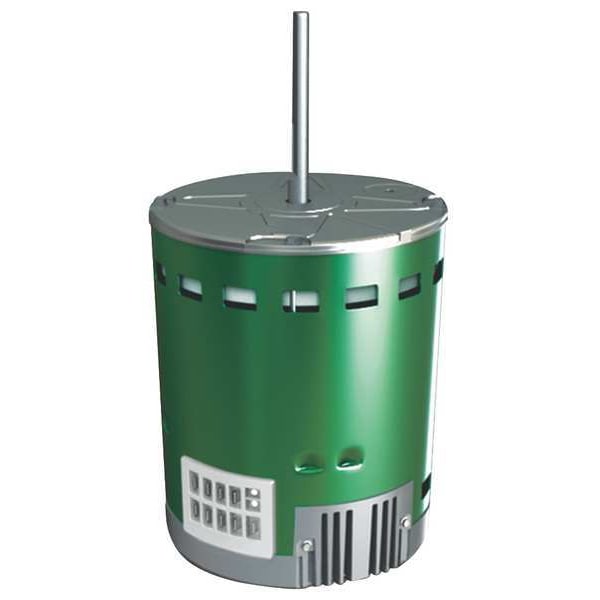

Brushless Direct Drive Blower, ECM, 1/2 HP

  • Mfr # 6005
  • Zoro # G1536525
product price:
$
315.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Direct Drive Fan/Blower
HP
1/2
RPM Range
1,001-1,100
Voltage
115V AC, 230V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6005
Zoro #
G1536525
UPC #
815585020547
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
4 15/16 in
Body Dia.
5 5/8 in
Overall Length
11 1/4 in
Length Less Shaft
6 5/16 in
Lead Length
42 in
Frame Size
48
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Fits Chest Size
Auto Rotation, Dual Voltage by Plug Selection, Multi-hp by Input Selection, Multi-Speed (5)

Details

Motor Sub Application
Direct Drive Fan/Blower
HP
1/2
RPM Range
1,001-1,100
Voltage
115V AC, 230V AC
Phase
Single
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,075
No. of Speeds
5
Application
Fan/Blower
Includes
Adapters, Complete Wiring Harness, Extra Wire Terminals, Voltage Plugs
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Full Load Amps
6.7/4.0 A
Hz
60 Hz
Item
Direct Drive Blower Motor
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Duty
Continuous
Motor Shaft Design
Flat
Frame
48
Motor Design
ECM
Motor Thermal Protection
None
Ins. Class
B
Motor Mounting Type
Band
Capacitor Required
No
Motor Service Factor
1
Ambient Temperature
-40 Degrees to 40 Degrees C
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Motor Frame Material
Aluminum
Standards
UL Recognized (1004)
Frame Material
Aluminum
Stud Quantity
4
Number of Shafts
1
Usable @ 208V
No
Duty Cycle
Continuous
Weight
14 lb
Usable @ 200V
No
Frequency
60 Hz
Number of Speeds
5
Mounting
Band
Includes User Interface
User Interface Not Included
Wattage
370 W
Sub Application
General Purpose
Rated Horsepower
1/5 to 1/2 hp
Full Load Current @ 60 Hz
6.7/4.0 A
ECM Motor Type
Constant Torque
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Product Type
Fan and Blower Motor
Series
Evergreen(R) IM
For Motor Replacement
PSC Indoor Blower Motor
Features
Auto Rotation, Dual Voltage by Plug Selection, Multi-hp by Input Selection, Multi-Speed (5)
Bearing Type
Ball
Compatible with External Controller
Not External Control Compatible
Mounting Position
Horizontal

Description

Direct-Drive Blower Motor, ECM, 1/2 HP, Nameplate RPM 1070, Voltage 115/230, NEMA/IEC Frame 48, Open, Band Mounting, Number of Speeds 1, Full Load Amps 6.7/4.0, 60/50 Hz, 1 Phase, CW/CCW Rotation, Electronic Thermal Protection, Insulation Class B, Ball Bearings, Service Factor 1.0, Overall Length 11-1/4 In, Body Dia 5-5/8 In, Shaft Length 4-15/16 In, Shaft Dia 1/2 In, Shaft Type Flat
