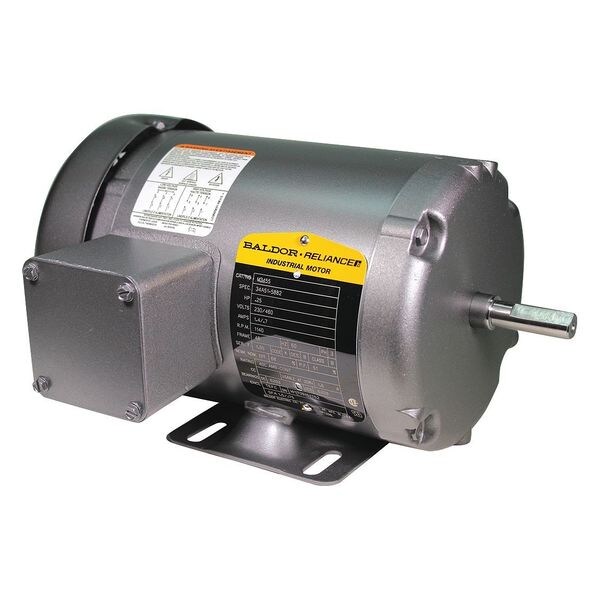

Baldor-Reliance Three-Phase General Purpose Motor, 1/4 HP, 48 Frame, 230/460V AC Voltage, 1,140 Nameplate RPM M3455 - main

Three-Phase General Purpose Motor, 1/4 HP, 48 Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # M3455

  • Zoro # G8441115

product price:  $644.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.4/0.7 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
M3455
Zoro #
G8441115
UPC #
781568101797
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/4 in
Overall Length
10 3/4 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
2 yr
Shaft Diameter
1/2 in
Frame Size
48

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1,140
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.4/0.7 A
Frame
48
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Flat
Nominal Efficiency
68 %
Standards
CSA, UR
CC Number
CC031A
Footnotes
30
Motor Thermal Protection
None
Inverter Rated
No
Includes
Gasketed Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
NEMA Design
B
Weight
19 lb
Duty Cycle
Continuous
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
2 yr
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B
Mounting Position
All Angle
Nameplate RPM @ 50 Hz
1,465/1,470/1,445/1,455/1,460 RPM
Inverter Rating
Not Inverter Rated
Nameplate Service Factor @ 60 Hz
1.35
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Shaft Design
Flat
Insulation Class
B
Application
General Purpose
Full Load Current @ 60 Hz
1.4/0.7 A
Bearing Type
Ball
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,140, Frame 48, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.4/0.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1,101-1,200, CSA, UR
