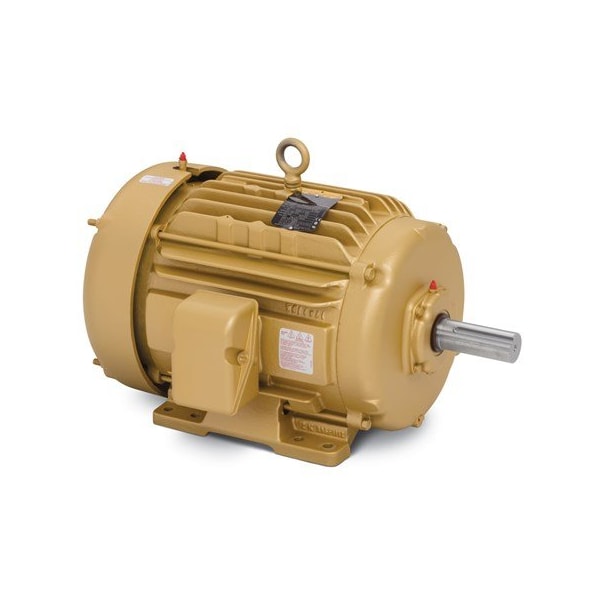

Three-Phase General Purpose Motor, 15 hp HP, 254T Frame, 230/460V AC Voltage

  • Mfr # EM2333T

  • Zoro # G112311312

product price:  $2,468.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

HP
15 hp
Nameplate RPM
1,765 RPM
Voltage
230/460V AC
Full Load Amps
18.1 A
Frame
254T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM2333T
Zoro #
G112311312
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
19 3/8 in
Overall Length
23 3/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Body Diameter
15.58 in
Frame Size
254T
Shaft Diameter
1 5/8 in
Wire Rope Length
23 3/8 in

Details

Item
General Purpose Motor
HP
15 hp
Nameplate RPM
1,765 RPM
Voltage
230/460V AC
Full Load Amps
18.1 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Nominal Efficiency
92.4 %
Standards
NEMA, RoHS
CC Number
CC010A
Inverter Rated
Yes
Weight
267 lb
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Conduit Box Position
F1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
No
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Application
General Purpose
Frame Material
Cast Iron
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Sub Application
Air Compressor, Conveyor, Pool/Spa Pump
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor
Conduit Box Location
Exterior
Full Load Current @ 60 Hz
18.1 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 hp HP, Nameplate RPM 1,765 RPM, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.1 A, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, NEMA, RoHS
