Shop CENTURY

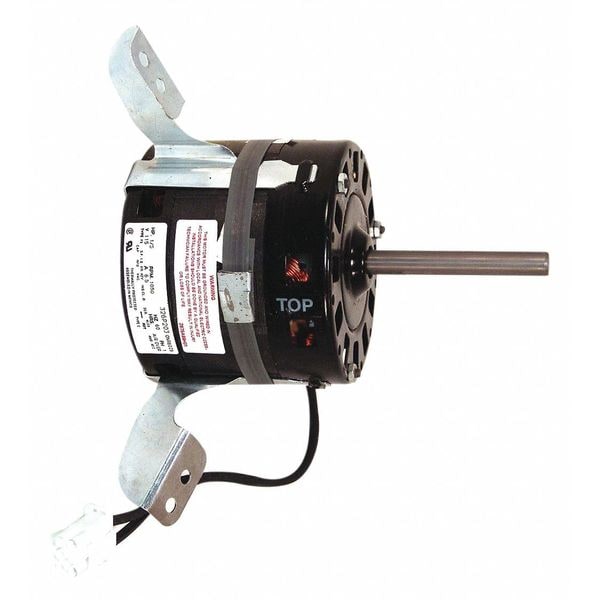

Direct Drive Blower Motor, 1/5 hp

  • Mfr # ONR6026

  • Zoro # G0679454

product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

Shaft Dia.
1/2 in
Motor Sub Application
Direct Drive Fan/Blower
Body Dia.
5 in
Motor Shaft Design
Flat
RPM Range
1,001-1,100
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ONR6026
Zoro #
G0679454
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 in
Shaft Length
3 3/4 in
Length Less Shaft
4 1/16 in
Overall Length
8 1/8 in
Lead Length
17 in
Shaft Diameter
1/2 in
Frame Size
42Y
Body Diameter
5 in
Wire Rope Length
8 1/8 in
Length
8 1/8 in

Details

Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Flat
RPM Range
1,001-1,100
Voltage
115V AC
Ins. Class
B
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting Type
T-Flex
Hz
60 Hz
Motor Thermal Protection
Auto
HP
1/5
Motor Bearings
Sleeve
Motor Shaft Rotation
CCWLE
Full Load Amps
6.05 A
Motor Enclosure Design
Open Air-Over
Max. Ambient Temp.
40 Degrees C
Frame
42Y
Motor Design
Shaded Pole
Duty
Continuous
Standards
CSA Certified, UL Recognized
Phase
Single
Item
OEM Replacement Motor
Application
Blowers, Fans and Air Circulators
Capacitor Required
Capacitor Not Required
Motor Mounting Position
Horizontal
No. of Speeds
1
Nameplate RPM
1,050
Motor Application
OEM Replacement
Weight
11 lb
Includes
Flexible Arms
Number of Shafts
1
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Stud Quantity
3
Usable @ 200V
Not Usable at 200V
Mounting Holes
3
Mounting
Torsion Flex Bracket
Number of Speeds
1
Rotation
CWSE
Insulation Class
B
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
6.05 A
Motor Enclosure Type
Open Air Over
Product Type
OEM Replacement Motor
Bearing Type
Sleeve
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Compatible Brand
Century

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/5 hp HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.05 A, 42Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex, Motor Mounting Position Horizontal
