Shop BALDOR-RELIANCE

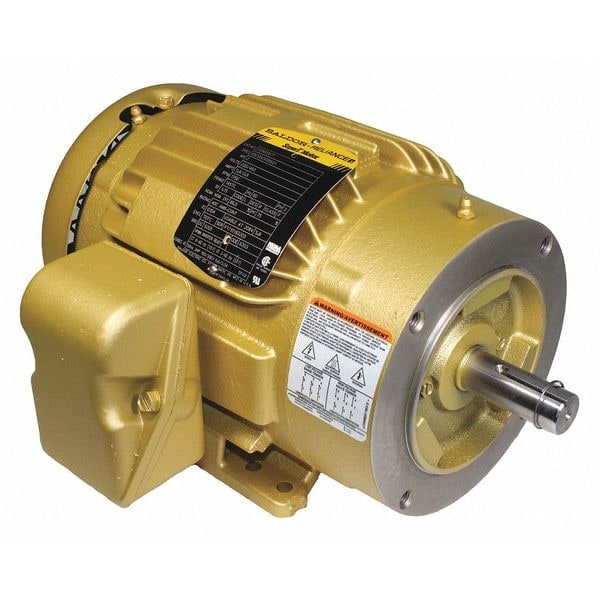

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 13 in Overall Length

  • Mfr # CEM3587T

  • Zoro # G8450032

product price:  $1,374.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.8/2.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3587T
Zoro #
G8450032
UPC #
781568134245
Country of Origin
United States

Dimensions

Length Less Shaft
10 15/16 in
Overall Length
13 in
Shaft Dia.
7/8 in
Shaft Length
2 3/16 in
Manufacturers Warranty Length
3 yr
Frame Size
145TC
Shaft Diameter
7/8 in
Wire Rope Length
13 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.8/2.9 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Motor Thermal Protection
None
Footnotes
1
Inverter Rated
Yes
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
Weight
64 lb
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Duty Cycle
Continuous
Frequency
60 Hz
NEMA Design Class
B
Bearing Type
Ball
Shaft Design
Keyed
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Manufacturers Warranty
3 yr
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Number of Speeds
1
Full Load Current @ 60 Hz
5.8/2.9 A
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,480/1,485/1,475/1,480 RPM

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
