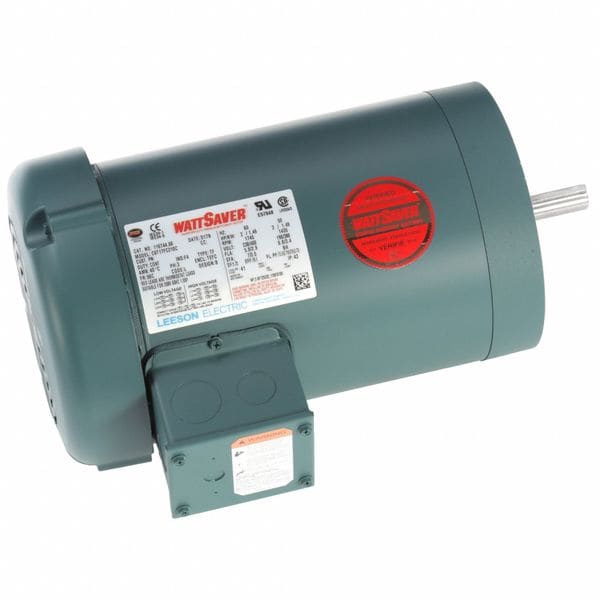

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 1,745 Nameplate RPM
Mfr # 116744.00
Zoro # G107353921
product price:Â $971.99
/ea
Free Shipping & Returns
Key Features
HP
2
Nameplate RPM
1,745
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.8/2.9 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
116744.00
Zoro #
G107353921
UPC #
691720348048
Country of Origin
United States
Dimensions
Overall Length
13 1/2 in
Shaft Dia.
5/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 2 HP, Nameplate RPM 1,745, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, C-Face Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Over 3,600, CSA, UL
Restrictions
This item has been restricted from sale in the following states:
CA
