Shop DAYTON

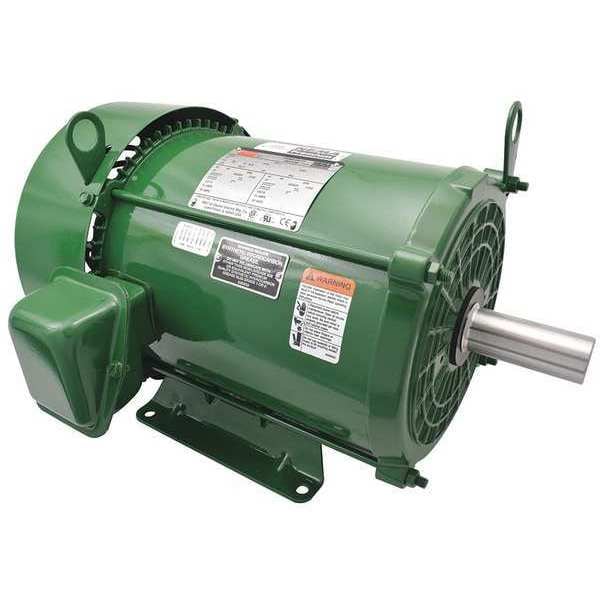

General Purpose Farm Duty Motor, 3-Phase, 10 HP, 230/460V AC, 1,760 Nameplate RPM, 215T Frame

  • Mfr # 35Z922

  • Zoro # G4989293

product price:  $1,940.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
35Z922
Zoro #
G4989293
UPC #
190735274217
Country of Origin
Mexico

Dimensions

Overall Length
18 7/8 in
Length Less Shaft
15 3/8 in
Shaft Dia.
1 3/8 in
Shaft Length
3 1/2 in
Wire Rope Length
18 7/8 in

Details

Item
Farm Duty Motor
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
215T
Motor Service Factor
1.15
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,760 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
General Purpose
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temperature
40 Degrees C
Full Load Amps
24.0/12.0 A
Ins. Class
F
Frame Material
Rolled steel
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty
Continuous
Includes
Shaft Slinger, Gasketed Conduit Box, Shaft Key
Nominal Efficiency
91.7 %
Motor Bearings
Ball
Finish
Dayton Green
Hz
60/50 Hz
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Application
Farm Duty
CC Number
CC030A

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 24.0/12.0 A, 215T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
