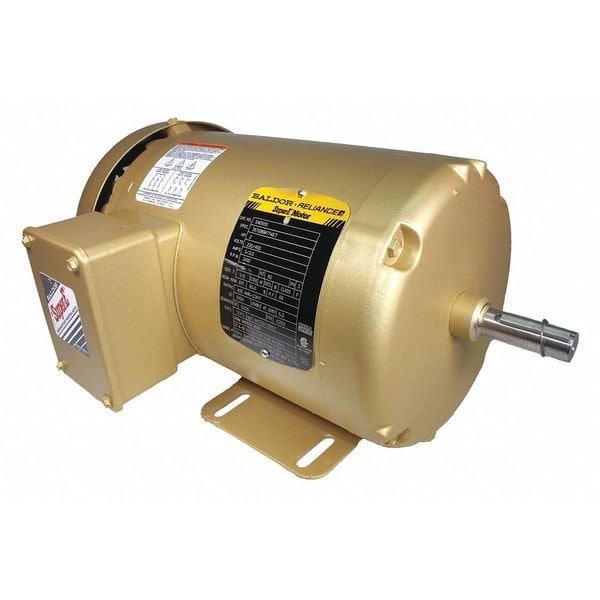

Baldor-Reliance Three-Phase General Purpose Motor, 2 HP, 56 Frame, 208-230/460V AC Voltage, 3490 rpm Nameplate RPM EM3555 - main
Shop BALDOR-RELIANCE

Three-Phase General Purpose Motor, 2 HP, 56 Frame, 208-230/460V AC Voltage, 3490 rpm Nameplate RPM

  • Mfr # EM3555

  • Zoro # G8241721

product price:  $965.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
3490 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5/2.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EM3555
Zoro #
G8241721
UPC #
781568295946
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/8 in
Overall Length
13 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
3490 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5/2.5 A
Frame
56
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Yes
Duty Cycle
Continuous
Usable @ 200V
No
Weight
48 lb

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3490 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
