Technical Specifications
| Zoro #: G1270464 Mfr #: FDL6001A | |
| Frame: 48Y | Shaft Length: 4-1/2" |
| Max. Ambient Temp.: 40 Degrees C | Bolt Circle Dia.: 5-3/16" |
| Motor Shaft Design: Flat | Body Dia.: 5-3/4" |
| Ring to Ring Center: 5-7/16" | Mounting Stud Location: Shaft End |
| Ins. Class: B | Motor Mounting Type: Stud |
| Mounting Stud Length: 5/8" | Manufacturers Warranty Length: 1 yr. |
| Motor Thermal Protection: Auto | Resilient Ring Dia.: 2-1/4" |
| Duty: Continuous | Capacitor Required: Included |
| Item: Direct Drive Blower Motor | Shaft Dia.: 1/2" |
| Motor Application: HVAC/R | Nameplate RPM: 1075 |
| Application: Replaces Emerson, Fasco, Genteq, Marathon, Protech Fan, Blower Motors In Residential and Light Commercial HVAC Systems | Standards: UL Recognized, CSA Certified |
| Hz: 60 | Motor Shaft Rotation: CW/CCW |
| Motor Mounting Position: Horizontal | Motor Enclosure Design: Open Air-Over |
| Stud Size: #8-32 | Phase: 1 |
| Motor Service Factor: 1.00 | No. of Speeds: 4 |
| Motor Design: Permanent Split Capacitor | Overall Length: 10-5/16" |
| Includes: Reversing Plug, Predrilled Holes In Shell for Rheem Mounting | Mounting Stud Pattern: 3-5/8" x 3-5/8" |
| Motor Sub Application: Direct Drive Fan/Blower | HP: 1/2 to 1/6 |
| Full Load Amps: 7.0 | Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 |
| Motor Bearings: Sleeve | Length Less Shaft: 5-7/8" |
| Voltage: 115 | Country of Origin (subject to change): China |
Product Description

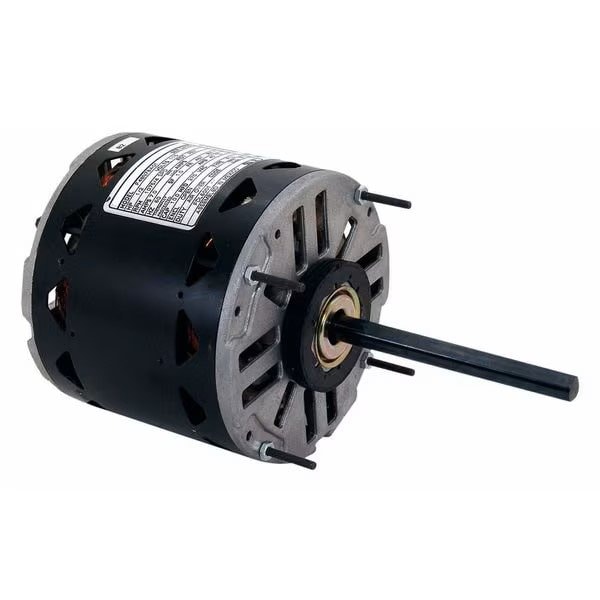

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Enclosure, 1/2 to 1/6 HP, 1075 Nameplate RPM, Voltage 115, 7.0 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 4, Mounting Stud, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-3/4 In., Length Less Shaft 5-1/2 In., Overall Length 10-5/16 In., Shaft Dia. 1/2 In.
