Shop BALDOR-RELIANCE

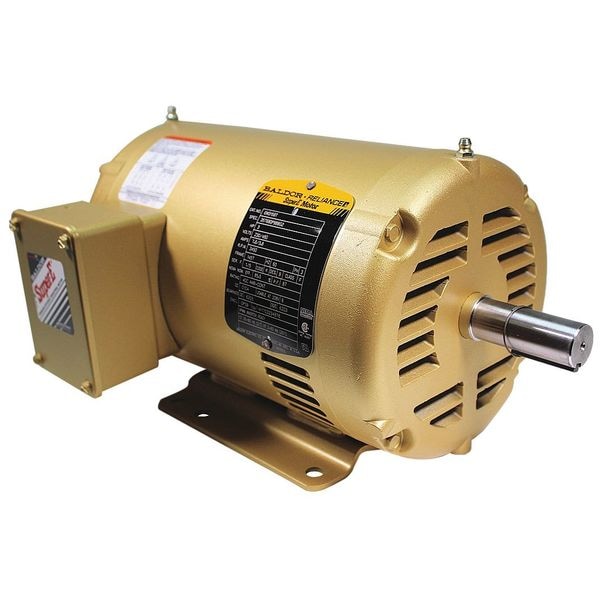

Three-Phase General Purpose Motor, 3 HP, 145T Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # EM3158T
  • Zoro # G8984717
product price:
$
926.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.6/3.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3158T
Zoro #
G8984717
UPC #
781568138830
Country of Origin
United States

Dimensions

Length Less Shaft
9 7/8 in
Overall Length
12 1/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
7/8 in
Frame Size
145T
Wire Rope Length
12 1/8 in
Length
12 1/8 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.6/3.8 A
Frame
145T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Weight
50 lb
Duty Cycle
Continuous
Full Load Current @ 60 Hz
7.6/3.8 A
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Nameplate RPM @ 50 Hz
1,475/1,480/1,460/1,465/1,470 RPM
Mounting Position
All Angle
Number of Speeds
1
Bearing Type
Ball
Shaft Design
Keyed
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Inverter Rated
NEMA Design Class
B
Frequency
60 Hz
Manufacturers Warranty
3 yr
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 3,450, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.6/3.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR, Includes Conduit Box
