  6. Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM

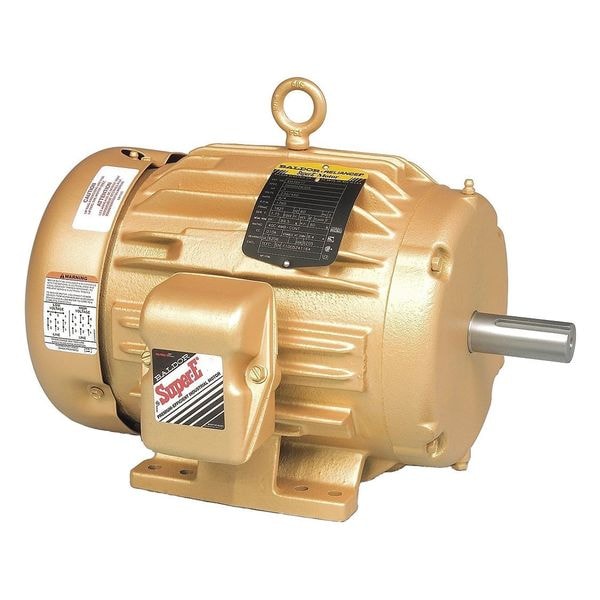

Baldor-Reliance Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM EM3661T - main

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM

  • Mfr # EM3661T

  • Zoro # G8359513

product price:  $1,427.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1755 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.2/4.1 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM3661T
Zoro #
G8359513
UPC #
781568102466
Country of Origin
United States

Dimensions

Length Less Shaft
12 1/2 in
Overall Length
15 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1755 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.2/4.1 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Yes
Weight
95 lb
Usable @ 200V
No

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1755 rpm, Frame 182T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.2/4.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
