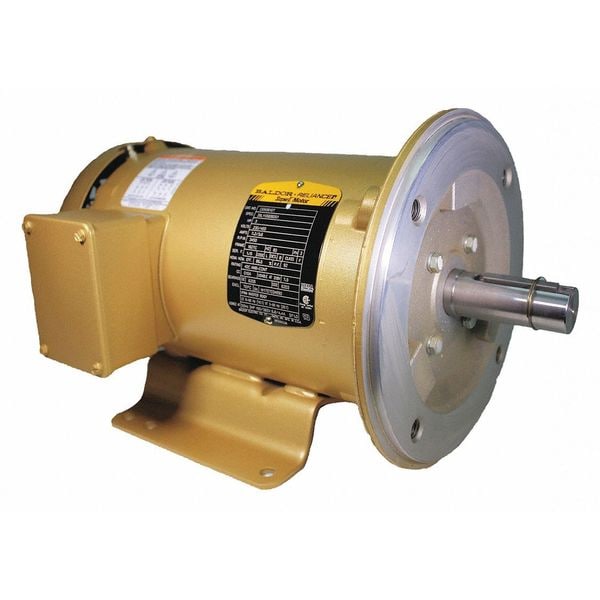

Baldor-Reliance Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM CEM3610T - main

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # CEM3610T

  • Zoro # G8463226

product price:  $1,233.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
7.2/3.6 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CEM3610T
Zoro #
G8463226
UPC #
781568422779
Country of Origin
United States

Dimensions

Length Less Shaft
12 9/16 in
Overall Length
15 3/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 11/16 in
Manufacturers Warranty Length
3 yr
Frame Size
182TC
Shaft Diameter
1 1/8 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
7.2/3.6 A
Frame
182TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Weight
70 lb
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
NEMA Design Class
B
Frame Material
Steel
Nameplate RPM @ 50 Hz
2,970/2,975/2,960/2,965/2,970 RPM
Inverter Rating
Inverter Rated
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
3 yr
Number of Speeds
1
Full Load Current @ 60 Hz
7.2/3.6 A
Insulation Class
F
Frequency
60 Hz
Shaft Design
Keyed
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3,450, Frame 182TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
