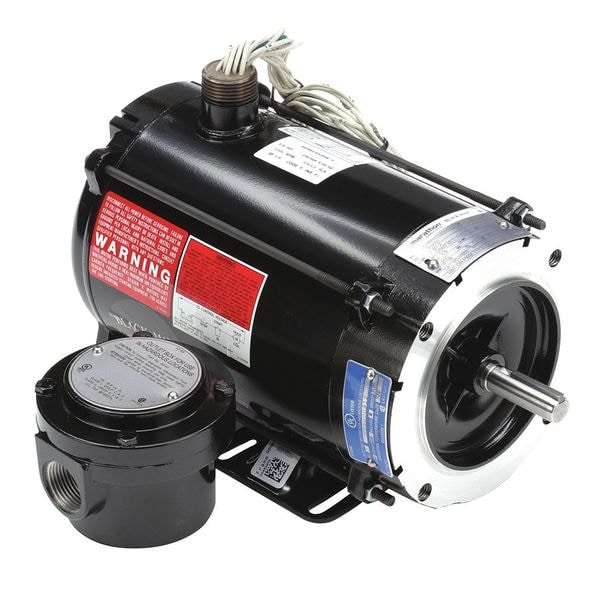

Vector Motor, 2.25 lb-ft, 3/4 HP, 230/460 V

  • Mfr # 056H17E5304
  • Zoro # G4304361
product price:
$
950.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3/4
Torque
2.25 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056H17E5304
Zoro #
G4304361
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
13 1/2 in
Shaft Length
2 1/16 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
3 Years
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
13 1/2 in
Length
13 1/2 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
3/4
Torque
2.25 ft-lb
Nameplate RPM
1,725
Speed Range
1,000:1
Max. Speed
3,600 RPM
Frame
56C
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Warranty
3 yr
RPM Range
1,701-1,800
Motor Mounting Type
Rigid Base
Standards
UL Listed And CSA Certified
Encoder Shaft
None
Motor Application
Crane
Motor Shaft Design
Keyed
Finish
Black
Motor Service Factor
1
Phase
Three
Max. Operating Frequency
120 Hz
Hz
60 Hz
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Full Load Amps
2.4/1.2 A
Ambient Temperature
40 Degrees C
Encoder Acceptable
No
Frame Material
Steel
Base
Rigid
Nominal Efficiency
82.5 %
Insulation Feature
MAX GUARD Class F
Duty
Continuous
Ins. Class
F
Motor Bearings
Ball
Motor Efficiency Group
Standard Efficient
NEMA Design
A
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Weight
38 lb
No. of Speeds
1
Conduit Box Position
F3
Product Type
Vector Motor
Maximum Operating Frequency
120 Hz
Maximum Speed
3,600 RPM
Motor Enclosure Type
Totally Enclosed Non-Ventilated
NEMA Design Class
A
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Shaft Design
Keyed
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
2.4/1.2 A
Inverter Rated
Inverter Rated
Efficiency Rating
NEMA Standard Efficiency
Bearing Type
Ball

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Torque 2.25 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
