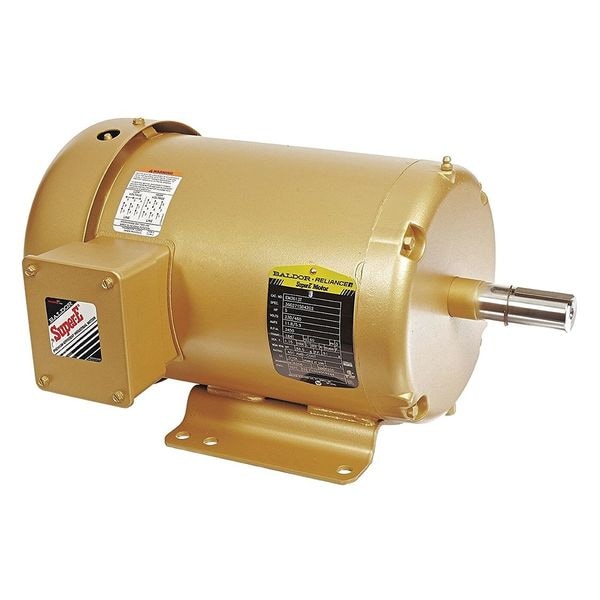

Baldor-Reliance Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3,470 Nameplate RPM EM3613T - main

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3,470 Nameplate RPM

  • Mfr # EM3613T

  • Zoro # G7611816

product price:  $1,208.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3,470
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
11.8/5.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3613T
Zoro #
G7611816
UPC #
781568138984
Country of Origin
United States

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3,470
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
11.8/5.9 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Weight
77 lb
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous

Description

Here is the revised description:

The BALDOR-RELIANCE - EM3613T is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy for powering various types of machinery in industrial and commercial settings. It's highly versatile and can be utilized across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3613T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA for tracking this motor based on its design and performance characteristics is CC031A.
  • Duty Cycle: This motor is designed for a continuous duty cycle in industrial applications.
  • Frame: The frame size conforms to standard specifications ensuring compatibility with other components; it houses and supports internal parts of the motor.
  • Full Load Amps: Operating at full capacity, this motor draws a maximum current of 11.8/5.9 A which helps determine power supply requirements for safe operation.
  • Green Certification or Other Recognition: NEMA Premium(R) Rated indicates that this motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: Yes - Suitable for use with a variable frequency drive which may allow control over speed and torque based on application requirements."
