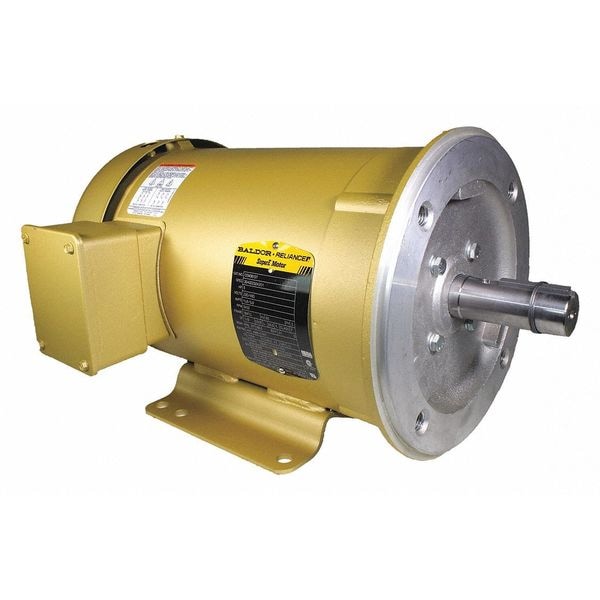

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # CEM3613T

  • Zoro # G8249403

product price:
$
1,298.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
12-11.8/5.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3613T
Zoro #
G8249403
UPC #
781568422588
Country of Origin
United States

Dimensions

Length Less Shaft
13 15/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 11/16 in
Manufacturers Warranty Length
3 yr
Frame Size
184TC
Shaft Diameter
1 1/8 in
Wire Rope Length
16 9/16 in
Length
16 9/16 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
12-11.8/5.9 A
Frame
184TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
NEMA Design
A
Usable @ 208V
Not Usable at 208V
Weight
81 lb
Frequency
60 Hz
Inverter Rating
Inverter Rated
Manufacturers Warranty
3 yr
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Frame Material
Steel
Number of Speeds
1
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Application
General Purpose
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
A
Full Load Current @ 60 Hz
12-11.8/5.9 A
Nameplate RPM @ 50 Hz
2,965/2,970/2,960/2,965 RPM
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed

Description

The BALDOR-RELIANCE - CEM3613T is a 3-phase AC General Purpose Motor, designed for use in various industrial and commercial settings. This motor converts electrical energy into mechanical energy to power different types of machinery. It's versatile enough to be used across multiple sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - CEM3613T:

  • CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for a continuous duty cycle, indicating it's intended to operate continuously under certain conditions. The actual performance may vary based on the specific application and usage.
  • Frame: The 184TC frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: When operating at full capacity, this motor is expected to draw current between 12-11.8/5.9 A. These figures are provided for determining power supply requirements; actual safety of operation depends on proper installation and use.
  • NEMA Premium(R) Rated: This certification acknowledges that the motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: Yes - indicates that this motor has been constructed with the intention of being powered by a variable frequency drive, potentially providing control over speed and torque depending on the specific application."
