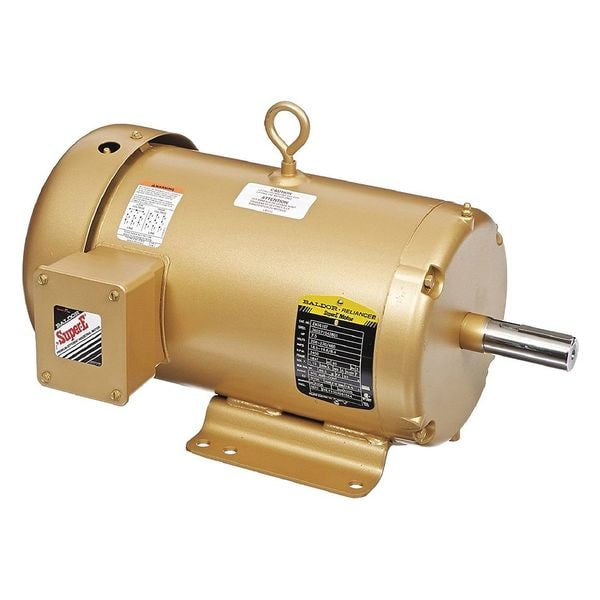

Baldor-Reliance Three-Phase General Purpose Motor, 7 1/2 HP, 184T Frame, 208-230/460V AC Voltage EM3616T - main

Three-Phase General Purpose Motor, 7 1/2 HP, 184T Frame, 208-230/460V AC Voltage

  • Mfr # EM3616T

  • Zoro # G6089526

product price:  $1,659.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
16.8/8.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3616T
Zoro #
G6089526
UPC #
781568540930
Country of Origin
United States

Dimensions

Length Less Shaft
15 5/16 in
Overall Length
18 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
16.8/8.4 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
A
Usable @ 208V
Yes
Weight
96 lb
Duty Cycle
Continuous
Usable @ 200V
No

Description

The BALDOR-RELIANCE - EM3616T is a General Purpose Motor, falling under the category of 3-Phase AC Motors. These motors are widely used in industrial and commercial settings for power transmission and pneumatics applications. They convert electrical energy into mechanical energy to operate different types of machinery, making them versatile across various sectors from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3616T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) is CC031A, classifying this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for continuous operation, which may vary based on specific industrial applications.
  • Frame: With a frame size of 184T, it conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: The product's specifications indicate it draws a maximum current of 16.8/8.4 A under full load conditions; this information can be used to assess power supply compatibility.
  • Green Certification or Other Recognition: This motor is NEMA Premium(R) Rated signifying that it meets certain environmental and energy efficiency standards.
  • Inverter Rated: Yes - indicates the potential for this motor to be compatible with certain variable frequency drives, though actual performance may depend on specific use cases.
