Shop BALDOR-RELIANCE

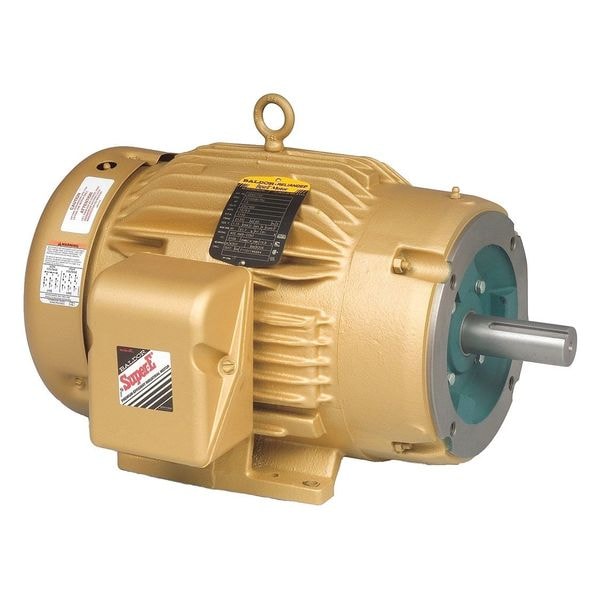

Three-Phase General Purpose Motor, 7 1/2 HP, 213TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # CEM3770T

  • Zoro # G9823326

product price:
$
2,229.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

HP
7 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
19/9.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3770T
Zoro #
G9823326
UPC #
781568134368
Country of Origin
United States

Dimensions

Length Less Shaft
16 1/16 in
Overall Length
19 3/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/16 in
Manufacturers Warranty Length
3 yr
Frame Size
213TC
Shaft Diameter
1 3/8 in
Wire Rope Length
19 3/16 in
Length
19 3/16 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
19/9.5 A
Frame
213TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Includes
Conduit Box
Motor Thermal Protection
None
Footnotes
1,30
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
170 lb
NEMA Design
A
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
NEMA Design Class
A
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Number of Speeds
1
Shaft Design
Keyed
Full Load Current @ 60 Hz
19/9.5 A
Application
General Purpose
Manufacturers Warranty
3 yr
Nameplate RPM @ 50 Hz
2,945/2,950/2,955/2,910/2,920/2,925 RPM
Nameplate Service Factor @ 60 Hz
1.15
Inverter Rating
Inverter Rated
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19/9.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
