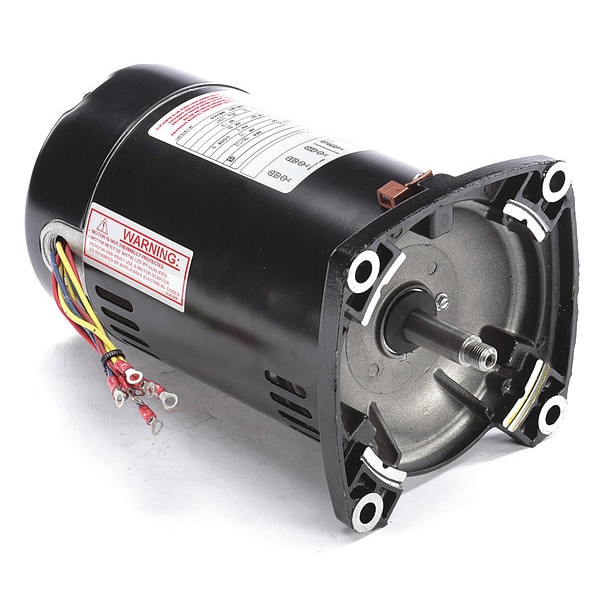

Pool Pump Motor, 3-Phase, 1/2 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # Q3052
  • Zoro # G4479002
product price:
$
309.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
Motor Service Factor
1.9
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Q3052
Zoro #
G4479002
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 in
Shaft Dia.
5/8 in
Overall Length
10 9/16 in
Length Less Shaft
9 11/16 in
Body Dia.
5.7 in
Height
5 5/8 in
Shaft Dia. (In.)
5/8
Shaft Diameter
5/8 in
Frame Size
48Y
Body Diameter
5.7 in
Wire Rope Length
10 9/16 in
Length
10 9/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
Motor Service Factor
1.9
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
208V AC to 230V AC, 460V AC
Phase
Three
Motor Mounting Type
Face
Full Load Amps
3.0/1.50 A
Motor Flange Material
Aluminum
Motor Efficiency Group
Standard Efficient
Hz
60 Hz
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Thermal Protection
None
Standards
CSA
Motor Application
Pump
Shaft
Threaded 1/2-20 UNF-2A RH
Ambient Temperature
50 Degrees C
Ins. Class
B
Motor Sub Application
Pool and Spa Pump
Finish
Black
Motor Bearings
Ball
Shaft Material
Stainless Steel
Max. Ambient Temp.
50 Degrees C
Weight
19 lb
Motor Frame Material
Steel
No. of Speeds
1
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Application
Pump
Insulation Class
B
Mounting Position
Horizontal
Frame Material
Steel
Number of Wires
9
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Product Type
Pump Motor
Full Load Current @ 60 Hz
3.0/1.5 A
Ambient Temperature - Maximum
50 Degrees C
Frequency
60 Hz
Shaft Design
Threaded
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1.9
Number of Speeds
1
Sub Application
Pool and Spa Pump

Description

Pool and Spa Pump Motor, Body Dia. 5.7 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 3.0/1.50, Height 5 5/8 in, HP 1/2, Ins. Class B, Length Less Shaft 9 11/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
