Banjo

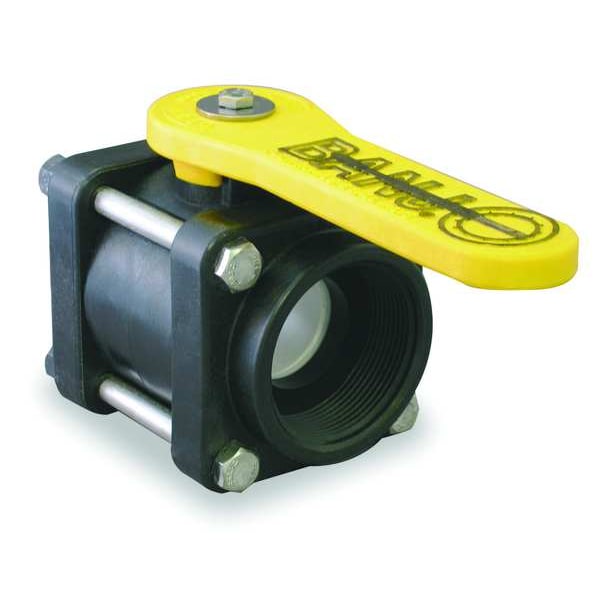

1/2" FNPT Polypropylene Ball Valve Inline

product price: $33.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Polypropylene
  • Body Style Inline
  • Max. Pressure 150 psi CWP
  • Connection Type FNPT x FNPT
  • Valve Structure 3-Piece
See all product information

Product Information

  • Brand Banjo
  • MFR # V050
  • Zoro # G2232465
  • UPC #
    791206020625
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1/2"
Overall Length 3.41 in
Handle Length 3.31 in
Connection Size - Side 2 1/2 in
Handle Height 0.75 in
Nominal Valve Size 1/2 in
Connection Size - Side 1 1/2 in

Details

Body Material Polypropylene
Body Style Inline
Max. Pressure 150 psi CWP
Connection Type FNPT x FNPT
Valve Structure 3-Piece
Handle Material Polypropylene
Temp. Range Up to 150 Degrees F
Stem Material Polypropylene
Ball Valve Basic Body Material Plastic
Ball Valve Product Group Manual
Body Seal Material FKM
Handle Type Lever
Stem Type Self-Lubricating
Item Ball Valve
Port Standard
Seat Material PTFE
Ball Material Polypropylene
Seal Material FKM
Connection FNPT
Type Three Piece
Sub-Category Synthetic Ball Valves
Material of Construction Polypropylene
Connection Type - Side 2 NPT
For Media Water
Valve Construction Three-Piece
Connection Gender - Side 2 Female
Operating Temperature - Minimum 0 Degrees F
Maximum Pressure - Combustible Gas Not Rated
Vented Ball Valve Non-Vented
Vacuum Service Rating Not Available
Connection Gender - Side 1 Female
Valve Ways 2-Way
Maximum Pressure - Operating 300 psi
Ball Port Style Full Port
3-A Standard Compliance Not Rated
Operating Temperature - Maximum 150 Degrees F
Color - Valve Handle Yellow
Coefficient of Volume (Cv) Not Available
Valve Body Style Straight
Connection Type - Side 1 NPT
Handle - Locking Non-Locking

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port, Handle - Locking Non-Locking
