Shop BANJO

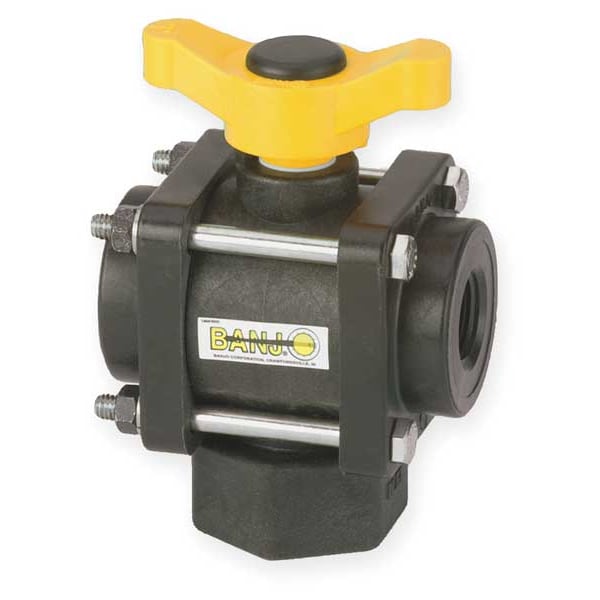

3/4" FNPT Polypropylene Ball Valve 3-Way, Body Style: Inline

  • Mfr # V075BL

  • Zoro # G1164563

product price:
$
53.99
/ea

Key Features

Ball Material
Polypropylene
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V075BL
Zoro #
G1164563
UPC #
791206021059
Country of Origin
United States

Dimensions

Pipe Size
3/4 in
Overall Length
4.03 in
Inlet Connection Height
2.06 in
Handle Height
3.15 in
Nominal Valve Size
3/4 in
Outlet Connection Size - Side 1
3/4 in
Outlet Connection Size - Side 2
3/4 in
Connection Size - Side 1
3/4 in
Inlet Connection Size
3/4 in
Wire Rope Length
4.03 in
Length
4.03 in

Details

Ball Material
Polypropylene
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
Three-Piece
For Media
Water
Connection Type
FNPT x FNPT x FNPT
Item
Ball Valve
Handle Material
Polypropylene
Seat Material
PTFE
Stem Type
Self-Lubricating
Max. Pressure
150 PSI CWP
Handle Type
Lever
Ball Valve Product Group
Manual
Stem Material
PTFE
Temp. Range
0 Degrees to 150 Degrees F
Body Material
Polypropylene
Seal Material
RPTFE
Type
Three Piece, Three Way
Vented Ball Valve
Non-Vented
Outlet Connection Type - Side 1
NPT
Maximum Pressure - Combustible Gas
Not Rated
3-A Standard Compliance
Not Rated
Outlet Connection Gender - Side 1
Female
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
0 Degrees F
Outlet Connection Type - Side 2
NPT
Flow Pattern
L Flow
Color - Valve Handle
Yellow
Inlet Connection Entry
Bottom
Outlet Connection Gender - Side 2
Female
Maximum Pressure - Steam
Not Rated
Vacuum Service Rating
Not Available
Handle - Locking
Non-Locking
Coefficient of Volume (Cv)
Not Available
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Maximum Pressure - Operating
200 psi
Valve Construction
Three-Piece
Inlet Connection Gender
Female
Inlet Connection Type
NPT

Description

Manual Three-Way Ball Valve, Body Material Polypropylene, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 3/4 in, Inlet Connection Size 3/4 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Bottom, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 3/4 in, Outlet Connection Gender - Side 1 Female

Restrictions
