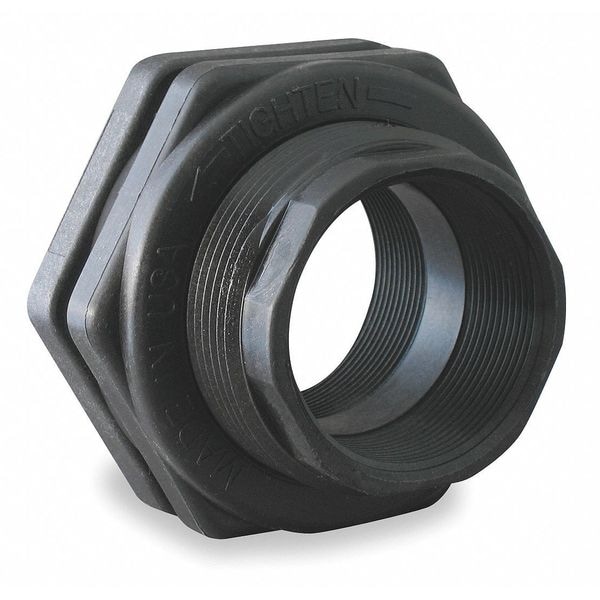

Bulkhead Tank Fitting, Polypropylene, 1 in FNPT x 1 in FNPT, 2-1/4 in Hole, EPDM Gasket

product price: $9.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Polypropylene
  • Pipe Size 1 in
  • Connection Type FNPT x FNPT
  • Required Hole Size 2-1/4"
  • Gasket Material EPDM
See all product information

Product Information

Dimensions

Pipe Size 1 in
Required Hole Size 2-1/4"
Length 2 9/16 in
Overall Length 2-9/16"
Pipe Size - Pipe Fitting 1"
Inside Connection Size 1 in
Outside Connection Size 1 in

Details

Item Bulkhead Tank Fitting
Body Material Polypropylene
Connection Type FNPT x FNPT
Gasket Material EPDM
Max. Pressure 150 psi
Temp. Range -20 Degrees to 150 Degrees F
Color Black
Basic Pipe Fitting Material Plastic
Fitting Connection Type FNPT x FNPT
Pipe Fitting Material Polypropylene
Minimum Operating Temperature -20 Degrees F
Fitting Material Finish Glass Reinforced
Number of Bolt Holes 0
Outside Connection Gender Female
Maximum Operating Pressure 300 psi
Fitting Material Polypropylene
For Tank Shape Curved, Flat
Inside Connection Type NPT
Maximum Operating Temperature 150 Degrees F
Inside Connection Gender Female
Outside Connection Type NPT

Description

Bulkhead Tank Fitting, Fitting Material Polypropylene, Fitting Material Finish Glass Reinforced, Fitting Material Grade Not Applicable, For Tank Shape Curved, Flat, Gasket Material EPDM, Inside Connection Gender Female, Inside Connection Size 1 in, Inside Connection Type NPT, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -20 Degrees F, Number of Bolt Holes 0, Outside Connection Gender Female, Outside Connection Size 1 in
