Shop BANJO

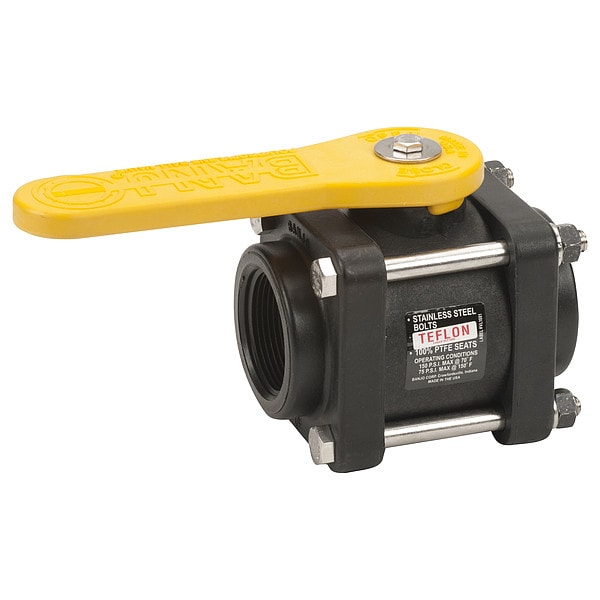

Manual 2-Way Ball Valve, NPT, Polypro

  • Mfr # V150T

  • Zoro # G608446672

product price:
$
114.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Polypropylene
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V150T
Zoro #
G608446672
UPC #
0791206036831
Country of Origin
United States

Dimensions

Pipe Size
1 1/2 in
Overall Length
4.59 in
Connection Size - Side 1
1 1/2 in
Connection Size - Side 2
1 1/2 in
Nominal Valve Size
1 1/2 in
Handle Length
6 in
Wire Rope Length
4.59 in
Length
4.59 in

Details

Ball Material
Polypropylene
Body Style
Straight
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Corrosive Chemicals, Water
Connection Type
NPT x NPT
Item
Manual Two-Way Ball Valve
Stem Material
Polypropylene
Seat Material
PTFE
Seal Material
TFE
Max. Pressure
225 PSI
Features
Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, The Valve Opens and Closes with Very Little Pressure on the Handle
Body Material
Polypropylene
Stem Type
Self-Lubricating
Handle Type
Lever
Handle Material
Polypropylene
Operating Temperature - Maximum
150 Degrees F
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
0 Degrees F
Handle - Locking
Non-Locking
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Color - Valve Handle
Yellow
Coefficient of Volume (Cv)
Not Available
Vacuum Service Rating
Not Available
Connection Type - Side 2
NPT
Valve Body Style
Straight
Connection Type - Side 1
NPT
Valve Construction
Three-Piece
Maximum Pressure - Operating
225 psi

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 225 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
