Shop All Ball Valves
Banjo

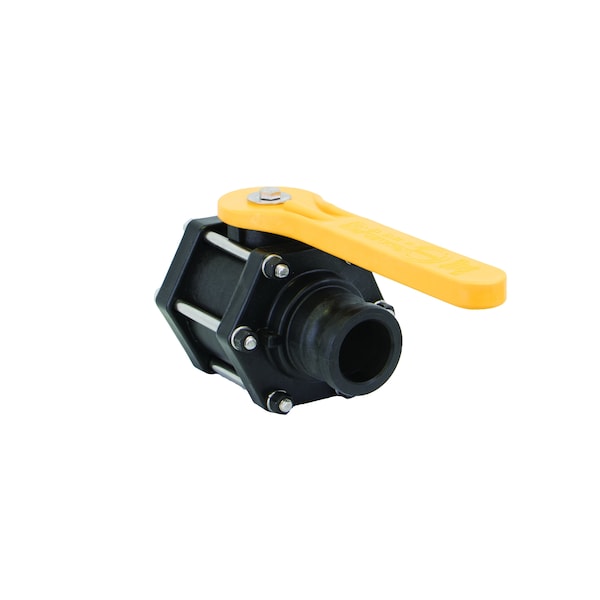

Manual 2-Way Ball Valve, NPT, Polypro

product price: $75.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 2 in
  • Body Material Polypropylene
  • Color Black & Yellow
  • Max. Pressure 225 psi
  • Stem Material Polypropylene
See all product information

Product Information

  • Brand Banjo
  • MFR # VFMT200FP
  • Zoro # G208446683
  • UPC #
    0791206015782
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 2 in
Overall Length 8.22 in
Handle Height 2.22 in
Handle Length 9.25 in
Connection Size - Side 1 2 in
Connection Size - Side 2 2 in
Nominal Valve Size 2 in

Details

Body Material Polypropylene
Color Black & Yellow
Max. Pressure 225 psi
Stem Material Polypropylene
Item Manual Two-Way Ball Valve
Stem Type Self-Lubricating
Seal Material FKM
Handle Material Polypropylene
Features Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Stainless Steel Bolts, Valve Opens and Closes with Very Little Pressure on the Handle
Port Full
Seat Material PTFE
Body Seal Material PTFE
Handle Type Lever
Ball Material Polypropylene
Material Polypropylene
Vacuum Service Rating Not Available
Ball Port Style Full Port
Operating Temperature - Maximum 150 Degrees F
Vented Ball Valve Non-Vented
Handle - Locking Non-Locking
Connection Type - Side 1 NPT
Maximum Pressure - Combustible Gas Not Rated
For Media Corrosive Chemicals, Water
Coefficient of Volume (Cv) Not Available
Connection Gender - Side 2 Male
Connection Type - Side 2 Camlock
Valve Ways 2-Way
Valve Construction Three-Piece
3-A Standard Compliance Not Rated
Valve Body Style Straight
Color - Valve Handle Yellow
Connection Gender - Side 1 Male
Operating Temperature - Minimum 0 Degrees F
Maximum Pressure - Operating 225 psi

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 225 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
