Shop All Ball Valves
Banjo

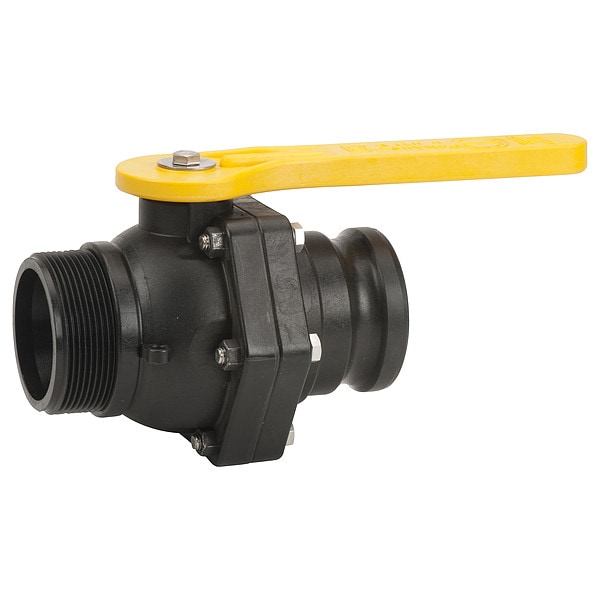

Manual 2-Way Ball Valve, NPT, Polypro

product price: $119.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 3 in
  • Body Material Polypropylene
  • Stem Material Polypropylene
  • Stem Type Not Available
  • Special Features Stubby Valve
See all product information

Product Information

  • Brand Banjo
  • MFR # VSFMT300
  • Zoro # G308446767
  • UPC #
    0791206045666
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 3 in
Overall Length 7.88 in
Handle Height 3.59 in
Nominal Valve Size 3 in
Connection Size - Side 2 3 in
Handle Length 9.25 in
Connection Size - Side 1 3 in

Details

Body Material Polypropylene
Stem Material Polypropylene
Stem Type Not Available
Special Features Stubby Valve
Handle Material Polypropylene
Max. Pressure 225 psi
Handle Type Lever
Seal Material FKM
Ball Material Polypropylene
Port Full
Connection Type MNPT x Male
Body Seal Material FKM
Features Lightweight, Stainless Steel Bolts, Unique Patented Compact Design
Seat Material PTFE
Item Manual Two-Way Ball Valve
Valve Construction Two-Piece
Color - Valve Handle Yellow
Maximum Pressure - Operating 225 psi
Valve Body Style Straight
Vented Ball Valve Non-Vented
Ball Port Style Full Port
3-A Standard Compliance Not Rated
For Media Corrosive Chemicals, Water
Maximum Pressure - Combustible Gas Not Rated
Operating Temperature - Minimum 0 Degrees F
Connection Gender - Side 1 Male
Connection Type - Side 2 Camlock
Handle - Locking Non-Locking
Vacuum Service Rating Not Available
Connection Type - Side 1 NPT
Coefficient of Volume (Cv) Not Available
Operating Temperature - Maximum 150 Degrees F
Connection Gender - Side 2 Male
Valve Ways 2-Way

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Two-Piece, Nominal Valve Size 3 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 225 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
