  11. 3/8" Push Polypropylene Ball Valve Inline
Shop All Ball Valves
Banjo

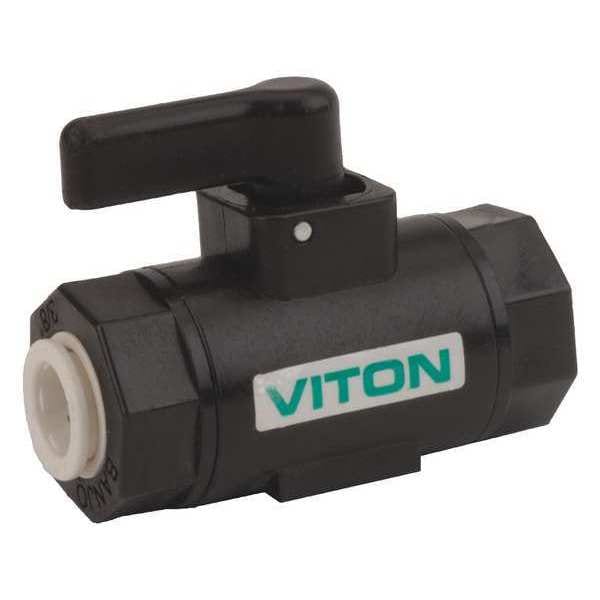

3/8" Push Polypropylene Ball Valve Inline

original price: $29.39
9% off
new price: $26.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Polypropylene
  • Body Style Inline
  • Tube Size 3/8"
  • Handle Material Polypropylene
  • Valve Structure 1-Piece
See all product information

Product Information

Dimensions

Pipe Size 3/8"
Tube Size 3/8"
Overall Length 2.44 in
Connection Size - Side 2 3/8 in
Handle Height 1.22 in
Connection Size - Side 1 3/8 in
Nominal Valve Size 3/8 in

Details

Body Material Polypropylene
Body Style Inline
Handle Material Polypropylene
Valve Structure 1-Piece
Ball Valve Basic Body Material Plastic
Handle Type Lever
Ball Valve Product Group Manual
Port Standard
Body Seal Material FKM
Item Ball Valve
Temp. Range 0 Degrees to 150 Degrees F
Connection Type Push x Push
Stem Type 1-Piece Stem/Ball
Ball Material Polypropylene
Features High Quality Rubber O-Ring
Stem Material Polypropylene
Max. Pressure 150 psi CWP
Hose I.D. 1/4 in
Seat Material Viton
Seal Material FKM
Sub-Category Synthetic Ball Valves
Operating Temperature - Minimum 0 Degrees F
For Media Water
Vacuum Service Rating Not Available
Valve Body Style Straight
Coefficient of Volume (Cv) Not Available
Maximum Pressure - Combustible Gas Not Rated
3-A Standard Compliance Not Rated
Color - Valve Handle Yellow
Valve Construction One-Piece
Connection Gender - Side 1 Female
Operating Temperature - Maximum 150 Degrees F
Connection Type - Side 1 Push
Vented Ball Valve Non-Vented
Maximum Pressure - Operating 150 psi
Connection Type - Side 2 Push
Handle - Locking Non-Locking
Valve Ways 2-Way
Ball Port Style Standard Port
Connection Gender - Side 2 Female

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Water, Valve Construction One-Piece, Nominal Valve Size 3/8 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Standard Port, Handle - Locking Non-Locking
