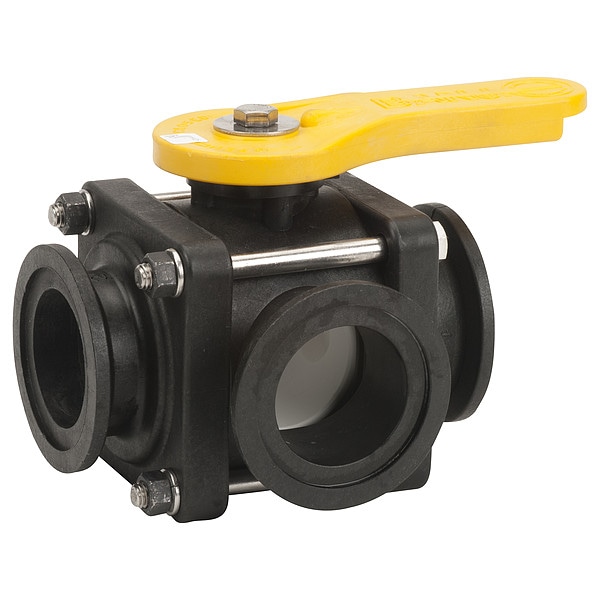

Manual 3-Way Ball Valve, 2", Polypro

  • Mfr # MV220SL

  • Zoro # G908446785

product price:  $99.99
/ea

Key Features

Ball Material
Polypropylene
Body Style
3-Way
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MV220SL
Zoro #
G908446785
UPC #
0791206008906
Country of Origin
United States

Dimensions

Pipe Size
2 in
Overall Length
6.25 in
Outlet Connection Size - Side 2
2 in
Outlet Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Handle Length
5.19 in
Connection Size - Side 1
2 in

Details

Ball Material
Polypropylene
Body Style
3-Way
Ball Port Style
Full Port
Valve Ways
3-Way
Valve Structure
Three-Piece
Connection Type
Flanged
Item
Manual Three-Way Ball Valve
Handle Type
Lever
Body Material
Polypropylene
Seal Material
FKM
Handle Material
Polypropylene
Features
Ball is Diamond Turned, after Molding, to Make it Spherically Perfect, which Provides Precise Contact Between Ball and Seats, Directional Flow, Right or Left Valve cannot be Turned Off to Stop Flow, Stainless Steel Bolts
Seat Material
PTFE
Stem Type
Self-Lubricating
Stem Material
PTFE
Max. Pressure
100 PSI
3-A Standard Compliance
Not Rated
Color - Valve Handle
Yellow
Outlet Connection Type - Side 1
Manifold Flange
Outlet Connection Type - Side 2
Manifold Flange
Inlet Connection Entry
Side
Vacuum Service Rating
Not Available
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Maximum
150 Degrees F
Coefficient of Volume (Cv)
Not Available
Maximum Pressure - Steam
Not Rated
Vented Ball Valve
Non-Vented
Operating Temperature - Minimum
0 Degrees F
Flow Pattern
L Flow
Handle - Locking
Non-Locking
Connection Type - Side 1
Manifold Flange

Description

Manual Three-Way Ball Valve, Body Material Polypropylene, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 2 in, Inlet Connection Size 2 in, Inlet Connection Type Manifold Flange, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 2 in, Handle Material Polypropylene, Outlet Connection Type - Side 1 Manifold Flange

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
